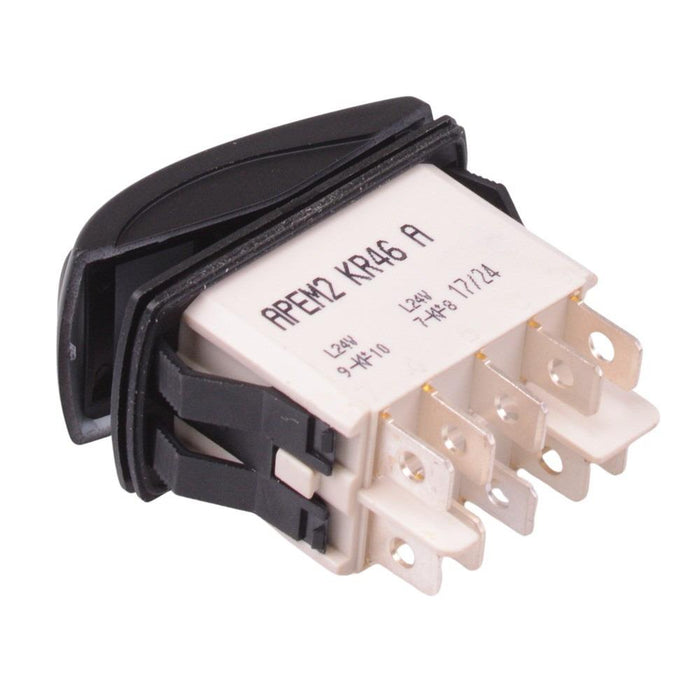

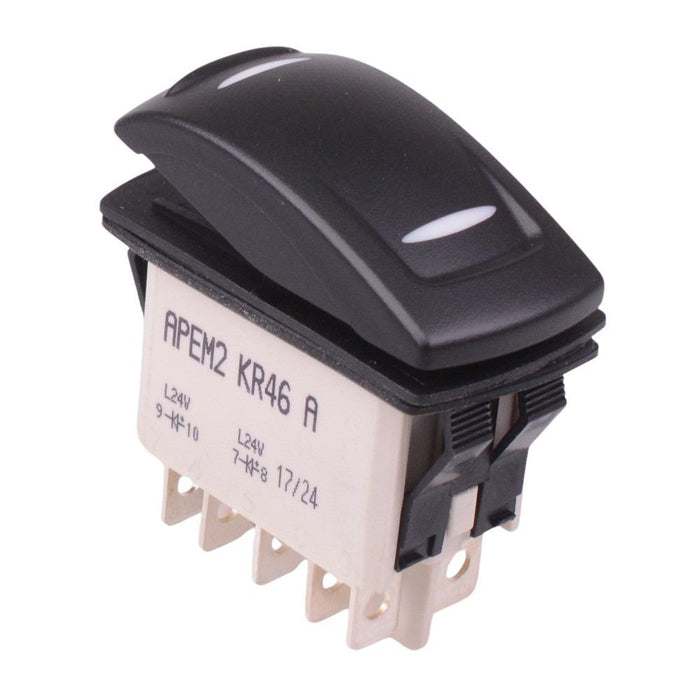

KR46CAKKJG22N64XXLP On-On Auto Rocker Switch Red/Green 24V illuminated DPDT IP68
by APEM
SKU 490049
MPN: KR46CAKKJG22N64XXLP
Availability:
21 in stock
Original price
£0
Original price
£25.58
-
Original price
£25.58
Original price
Current price
£25.58(inc. VAT)
£25.58
-
£25.58
Current price
£25.58
The KR46CAKKJG22N64XXLP is an attractive rugged automotive rocker switch from the KR series by APEM. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
On-On DPDT contacts Solder/Quick connect terminals 24V Red and Green illumination IP68 Rated Protection Silver contacts Rating: 5A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm Compatible with U2292 and U3152 connector
Specification
Actuation | Latching |
Contact Configuration | DPDT |
Contact Material | Silver |
Contact Rating | 5A 24VDC |
Current Rating | 5A |
Illuminated | Yes |
Illumination Colour | Green |
Illumination Voltage | 24V |
MOQ | 1 |
Mounting Style | Panel |
Number of Poles | 2 |
Number of Positions | 2 |
Operating Temperature | -40°C to +85°C |
Panel Cut Out | 36.8 x 21.08mm |
Panel Thickness | 0.8mm to 4.6mm |
Protection Level | IP68 |
Switch Operation | On-On |
Terminal Type | Quick Connect |
Voltage Rating | 24VDC |
