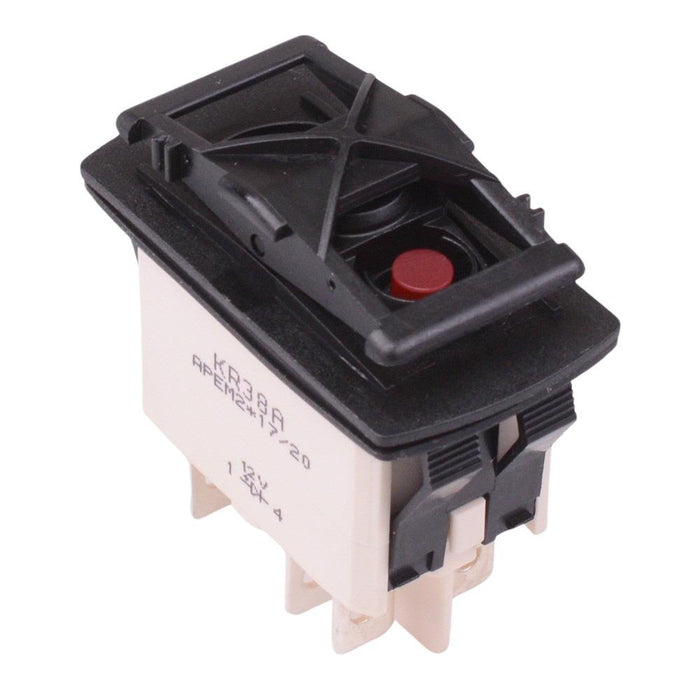

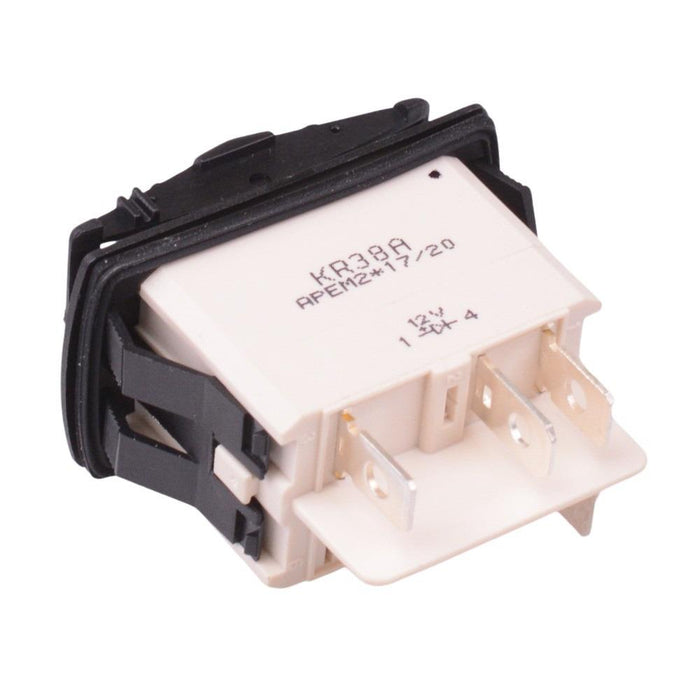

KR382AKDXA On-Off-(On) Auto Rocker Switch Red 12V illuminated SPDT IP68
by APEM
SKU 490040
MPN: KR382AKDXA
Availability:
40 in stock
Original price
£13.63
-
Original price
£13.63
Original price
£13.63
£13.63
-
£13.63
Current price
£13.63
The KR382AKDXA is an attractive rugged automotive rocker switch from the KR series by APEM. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
On-Off-(On) momentary SPDT contacts IP68 Rated Protection 12V Red illumination Solder / quick connect terminals Silver contacts Rating: 5A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Latching / Momentary |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 5A 24VDC |
| Current Rating | 5A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12V |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8mm to 4.6mm |
| Protection Level | IP68 |
| Switch Operation | On-Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
