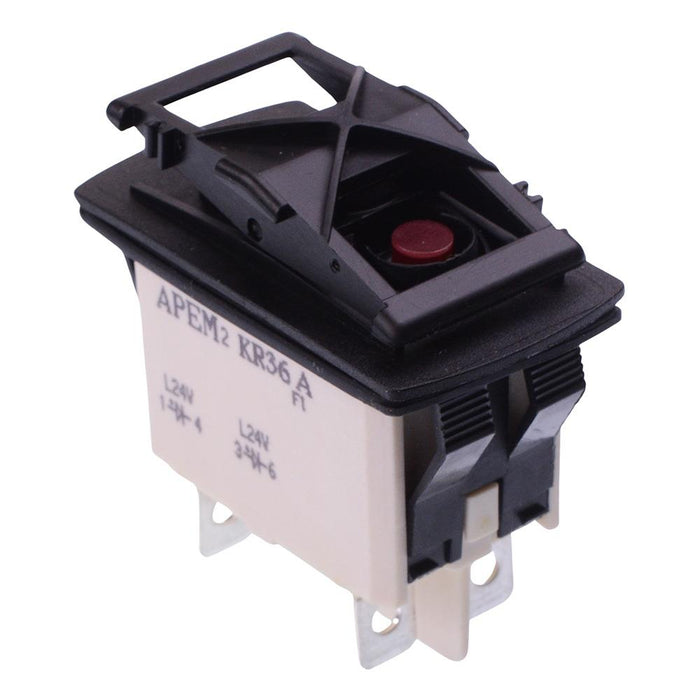

KR362AKJJA APEM On-On Red LED 24V Automotive Rocker Switch SPDT IP68
by APEM
SKU 487726
MPN: KR362AKJJA
Availability:
36 in stock
Original price
£15.55
-
Original price
£15.55
Original price
£15.55
£15.55
-
£15.55
Current price
£15.55
The KR362AKJJA is an attractive rugged automotive rocker switch from the KR series by APEM, red 24V LED illumination. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
Red LED 24V LED voltage On-On SPDT contacts Solder / quick connect terminals Silver contacts Protection rating: IP68 Rating: 10A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 10A 24VDC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 24VDC |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8-4.6mm |
| Protection Level | IP68 |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
