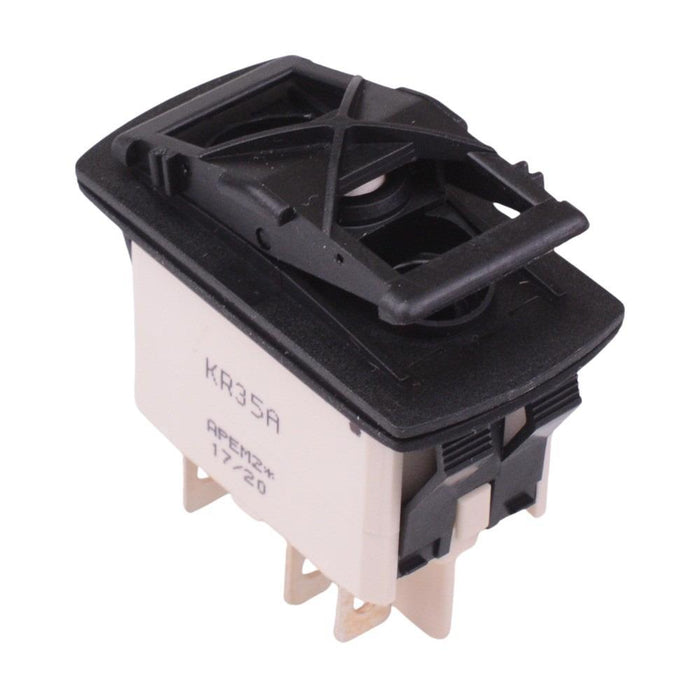

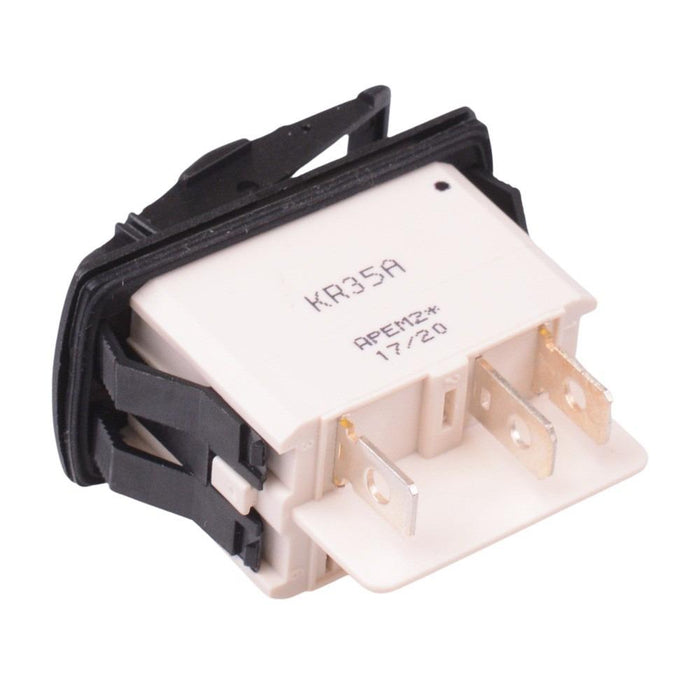

KR352AKXXA (On)-On 24V Auto Rocker Switch SPDT IP68
by APEM
SKU 490037
MPN: KR352AKXXA
Availability:
40 in stock
Original price
£12.26
-
Original price
£12.26
Original price
£12.26
£12.26
-
£12.26
Current price
£12.26
The KR352AKXXA is an attractive rugged automotive rocker switch from the KR series by APEM. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
(On)-On SPDT contacts IP68 Rated Protection Solder / quick connect terminals Silver contacts Rating: 5A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Momentary |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 5A 24VDC |
| Current Rating | 5A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8mm to 4.6mm |
| Protection Level | IP68 |
| Switch Operation | On-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
