KH135AAZXFG26NXXXX41 On-(On) Momentary 12V Yellow illuminated Rocker Switch SPDT IP69K
by APEM
SKU 490023
MPN: KH135AAZXFG26NXXXX41
Availability:
38 in stock
Original price
£20.14
-
Original price
£20.14
Original price
£20.14
£20.14
-
£20.14
Current price
£20.14

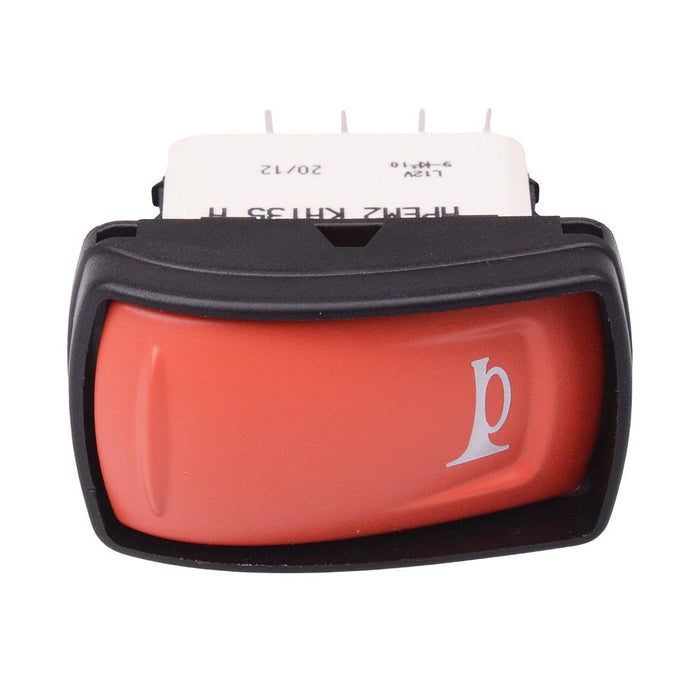

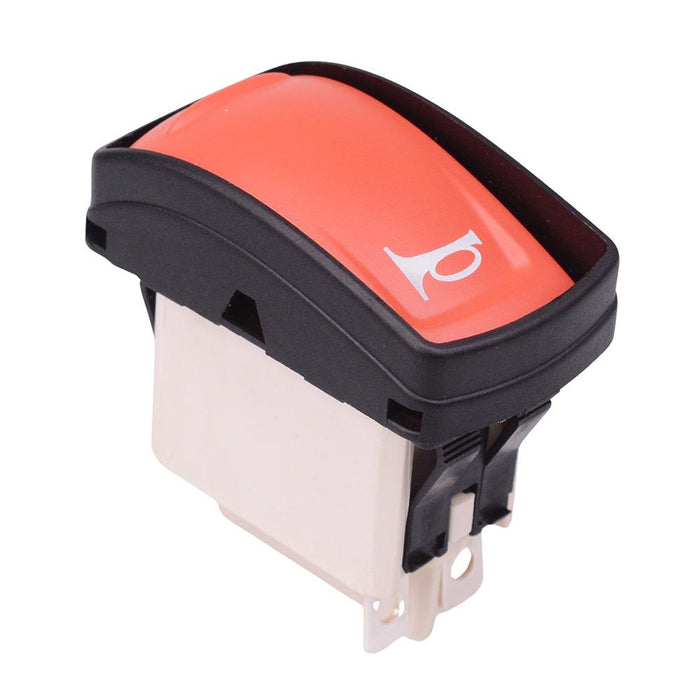

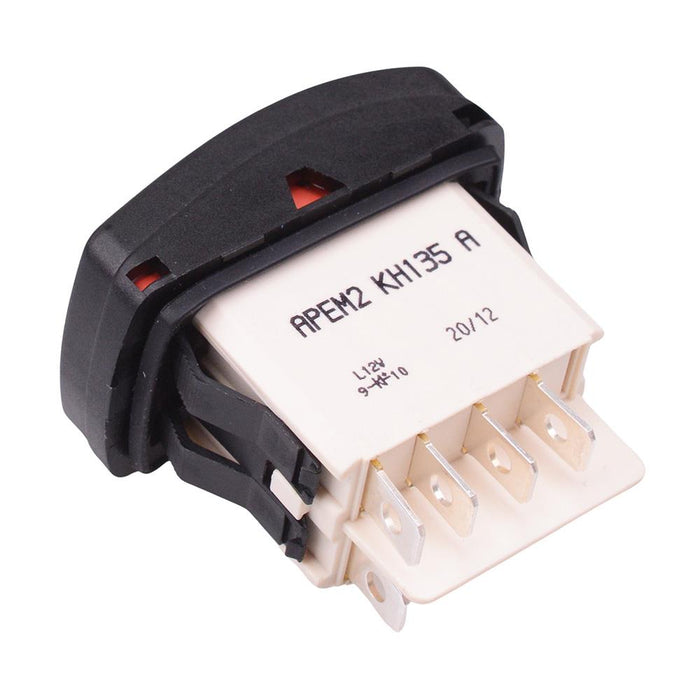

The KH135AAZXFG26NXXXX41 is a momentary power rower switch manufactured by APEM, featuring protection side guards and momentary operation. The switch features yellow 12V illumination with a red actuator with a horn symbol.
On-(On) momentary operation SPDT contacts Yellow 12V illumination Side protection guards Solder/quick connect terminals Rating: 10A 24VDC Protection rating: IP69K Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Momentary |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 5A 24VDC |
| Current Rating | 5A |
| Illuminated | Yes |
| Illumination Colour | Yellow |
| Illumination Voltage | 12V |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8mm to 4.6mm |
| Protection Level | IP69K |
| Switch Operation | On-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
