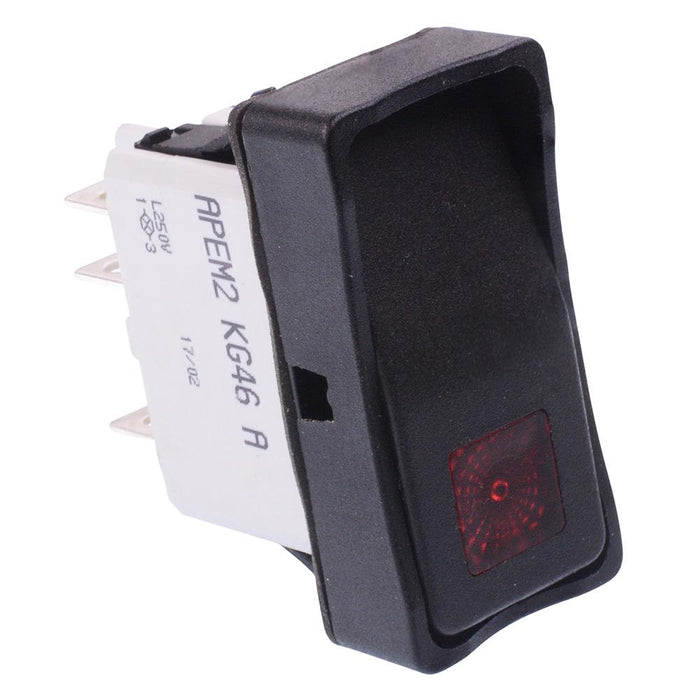

KG462A2XNB26X6 APEM On-On Red 250V illuminated Power Rocker Switch DPDT IP65
by APEM
SKU 487493
MPN: KG462A2XNB26X6
Availability:
55 in stock
Original price
£17.24
-
Original price
£17.24
Original price
£17.24
£17.24
-
£17.24
Current price
£17.24
The KG462A2XNB26X6 is a power rower switch manufactured by APEM, featuring DPDT contacts and red illumination. The switch is sealed to IP65 and is suitable for industrial applications.
On-On operation DPDT contacts Red 250VAC illumination IP65 protection rating Protection bezel 6.35mm quick connect terminals Rating: 15A 12VDC, 10A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 15A 12VDC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 250VAC |
| Material | Thermoplastic |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8-4.6mm |
| Protection Level | IP65 |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
