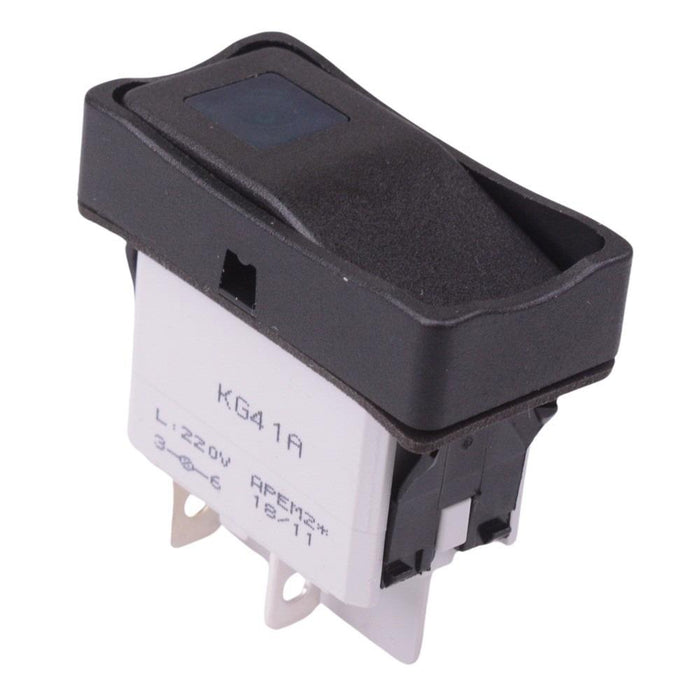

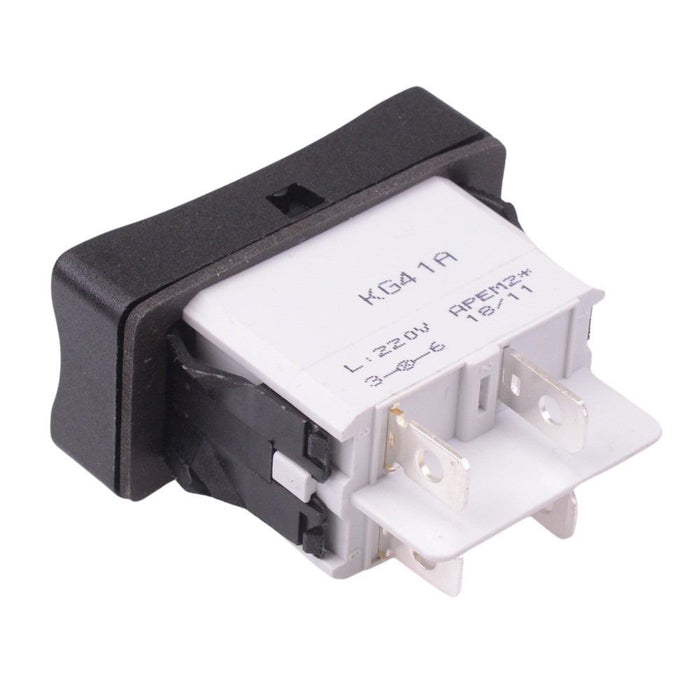

The KG412A2XSA26X3 is a power rower switch manufactured by APEM, featuring DPST contacts and green 220V illumination. The switch is sealed to IP65 and is suitable for industrial applications.
On-Off operation DPST contacts Green 220VAC illumination IP65 protection rating Protection bezel 6.35mm quick connect terminals Rating: 15A 12VDC, 10A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
Actuation | Latching |
Contact Configuration | DPST |
Contact Material | Silver |
Contact Rating | 15A 12VDC, 10A 24VDC |
Current Rating | 15A |
Electrical Life | 10,000 Cycles |
Illuminated | Yes |
Illumination Colour | Green |
Illumination Voltage | 220V |
MOQ | 1 |
Mounting Style | Panel |
Number of Poles | 2 |
Number of Positions | 2 |
Operating Temperature | -40°C to +85°C |
Panel Cut Out | 36.8 x 21.08mm |
Panel Thickness | 0.8mm to 4.6mm |
Protection Level | IP65 |
Switch Operation | On-Off |
Terminal Type | Quick Connect |
Voltage Rating | 24VDC |
