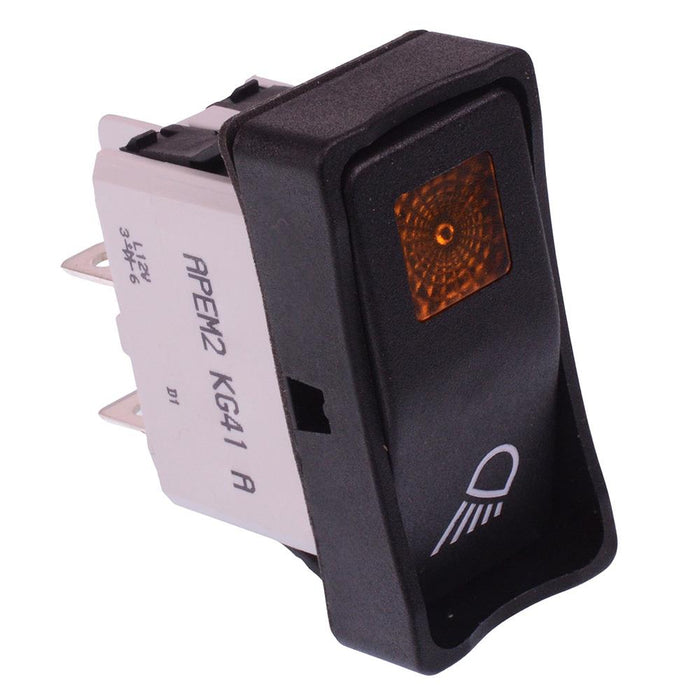

KG412A2FXA249XCVXX44 APEM On-Off Orange 12V illuminated Automotive Rocker Switch DPST IP65
by APEM
SKU 487838
MPN: KG412A2FXA249XCVXX44
Availability:
29 in stock
Original price
£16.22
-
Original price
£16.22
Original price
£16.22
£16.22
-
£16.22
Current price
£16.22
The KG412A2FXA249XCVXX44 is a 12V power rower switch manufactured by APEM, featuring a dipped beam headlight symbol and orange illumination. The switch is sealed to IP65 and is suitable for automotive applications.
Dipped beam headlight symbol On-Off operation DPST contacts Orange 12V illumination IP65 protection rating Protection bezel 6.35mm quick connect terminals Rating: 15A 12VDC, 10A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPST |
| Contact Material | Silver |
| Contact Rating | 15A 12VDC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Orange |
| Illumination Voltage | 12VDC |
| Material | Thermoplastic |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8-4.6mm |
| Protection Level | IP65 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
