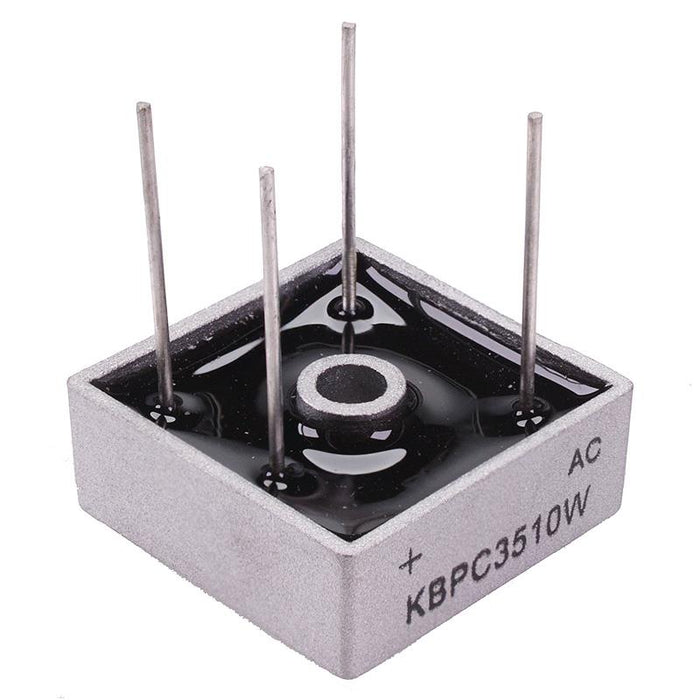

KBPC3510W Bridge Rectifier Diode 35A 1000V
SKU 483941
MPN: 483941
Availability:
485 in stock
Original price
£1.18
-
Original price
£1.18
Original price
£1.18
£1.18
-
£1.18
Current price
£1.18
The KBPC3510W is a silicon bridge rectifier diode featuring a metal case and 35A average forward rectified current, suitable for through hole PCB applications including AC to DC conversion.
35A average forward rectified current 1000V peak repetitive reverse voltage 400A surge overload rating Low reverse leakage current Body dimensions: 28.8 x 28.8 x 11.2mm ( length x width x height)
Specification
| Average Rectified Current | 35A |
| Back Order Lead Time | 40 Days |
| Maximum DC Blocking Voltage | 1000V |
| Maximum Forward Voltage | 1.1V |
| Maximum RMS Voltage | 700V |
| Mounting Style | Through Hole |
| Operating Temperature | -65°C to 150°C |
| Package | Metal Case |
| Packaging | Bulk |
| Peak Reverse Voltage | 1000V |
| Peak Surge Current | 400A |
