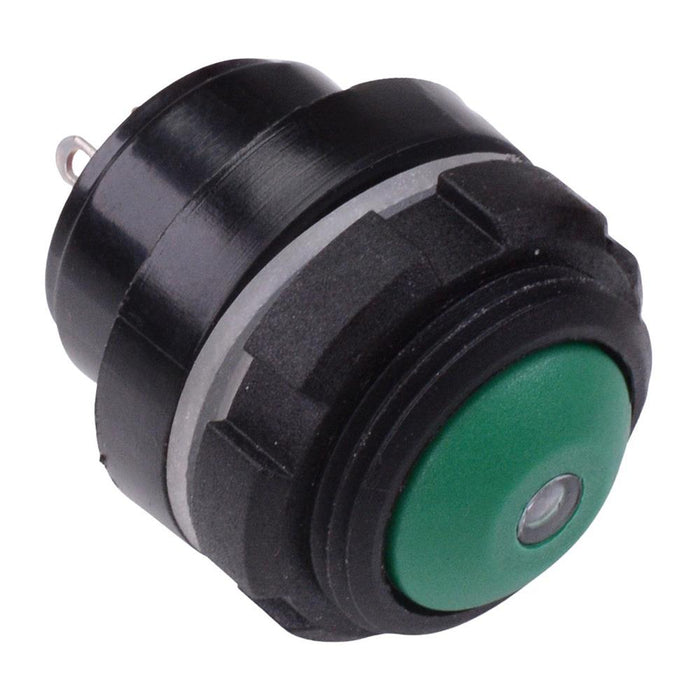

IZPR3S432L0G APEM Green LED Green Button 16mm Momentary NO Push Button Switch IP67
by APEM
SKU 487436
MPN: IZPR3S432L0G
Availability:
56 in stock
Original price
£17.99
-
Original price
£17.99
Original price
£17.99
£17.99
-
£17.99
Current price
£17.99
The IZPR3S432L0G is a rear mounting round sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features IP67 protection rating and solder lug gold plated contacts. This makes the switch ideal for applications including automotive and marine.
Button colour: green LED colour: green LED forward voltage: 2.1V LED forward current: 20mA Panel cut-out: 16.2mm Contacts: momentary SPST-NO Terminals: solder lug contacts Contact rating: 200mA 48VDC Protection rating: IP67 Maximum panel thickness: 3mm Dimensions: 20 x 26.2mm (diameter x height)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Green |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Silver |
| Contact Rating | 0.2A 48VDC |
| Current Rating | 0.2A |
| Electrical Life | 500,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 2.1VDC |
| Material | Polyamide |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 8mm |
| Product Series | IR |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 48VDC |
