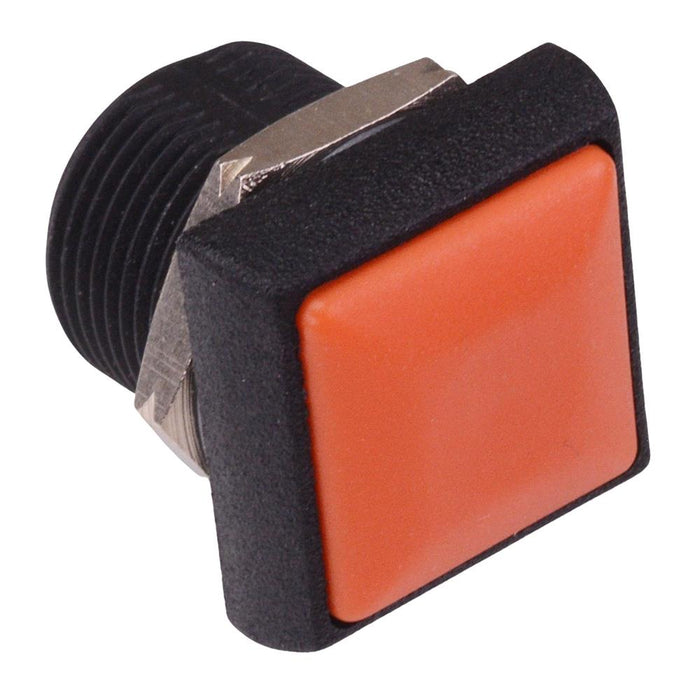

IRC3S492 APEM Orange Square 16mm Momentary NO Push Button Switch IP67
by APEM
SKU 487717
MPN: IRC3S492
Availability:
45 in stock
Original price
£13.38
-
Original price
£13.38
Original price
£13.38
£13.38
-
£13.38
Current price
£13.38
The IRC3S492 is a square sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features IP67 protection rating and solder lug contacts rated up to 200mA 48VDC. The switch is suitable for applications including automotive and marine.
Button colour: orange Panel cut-out: 16.2mm Contacts: momentary NO Terminals:solder lug contacts Contact rating: 200mA 48VDC Protection rating: IP67 Maximum panel thickness: 8mm Dimensions: 19.8 x 19.8 x 26.3mm (length x width x height)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Orange |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Silver |
| Contact Rating | 0.2A 48VDC |
| Current Rating | 0.2A |
| Electrical Life | 500,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Polyamide |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 8mm |
| Product Series | IR |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 48VDC |
