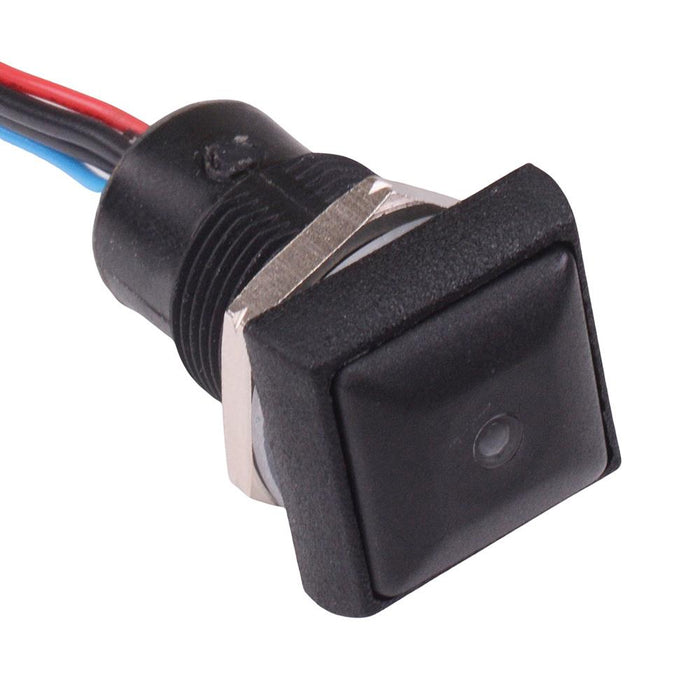

IRC3F422L0Y APEM Yellow LED Black Button Square 16mm Momentary NO Push Button Switch Prewired IP67
by APEM
SKU 487294
MPN: IRC3F422L0Y
Availability:
145 in stock
Original price
£18.14
-
Original price
£18.14
Original price
£18.14
£18.14
-
£18.14
Current price
£18.14
The IRC3F422L0Y is a square sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features LED illumination and is prewired with 500mm flying leads. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.
Button colour: black LED colour: yellow LED forward voltage: 2.1V LED forward current: 20mA Panel cut-out: 16.2mm Contacts: momentary NO Terminals: 500mm flying leads Contact rating: 200mA 48VDC Protection rating: IP67 Maximum panel thickness: 8mm Dimensions: 19.8 x 19.8 x 30.0mm (length x width x height)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Silver |
| Contact Rating | 0.2A 48VDC |
| Current Rating | 0.2A |
| Electrical Life | 500,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Yellow |
| Illumination Voltage | 2.1VDC |
| Material | Polyamide |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 8mm |
| Product Series | IR |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Flying Leads |
| Voltage Rating | 48VDC |
