IPC1SAD3 APEM Green Square Latching 12mm Push Button Switch SPST IP67
by APEM
SKU 487507
MPN: IPC1SAD3
Availability:
43 in stock
Original price
£13.38
-
Original price
£13.38
Original price
£13.38
£13.38
-
£13.38
Current price
£13.38

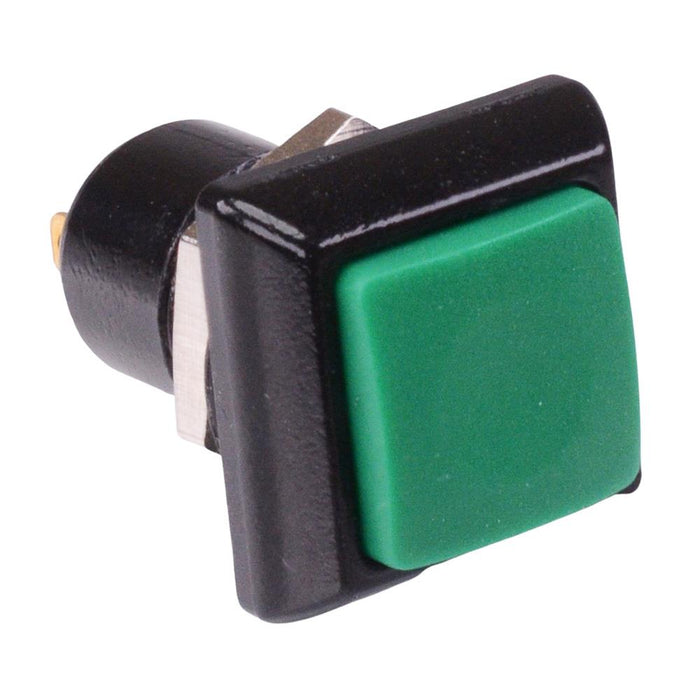

The IPC1SAD3 is a green latching square push button switch with a 12mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments including automotive.
Latching operation SPST contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Rating: 4A 12VDC, 3A 48VDC, 1A 72VDC Panel thickness: 1.5-5.5mm Dimensions: 27.6 x 17.5 x 17.5mm (height x width x length)
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Green |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Silver |
| Contact Rating | 4A 12VDC, 3A 48VDC, 1A 72VDC |
| Current Rating | 4A @ 12VDC |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Zinc Diecast |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 13.6mm |
| Panel Thickness | 1.5-5.5mm |
| Product Series | IP |
| Protection Level | IP67 |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 72VDC |
