YW1B-A1E20R Red 22mm Maintained Push Button Switch 2NO IP65 IDEC
by IDEC
SKU 931431
MPN: YW1B-A1E20R
Availability:
50 in stock
Original price
£11.16
-
Original price
£11.16
Original price
£11.16
£11.16
-
£11.16
Current price
£11.16

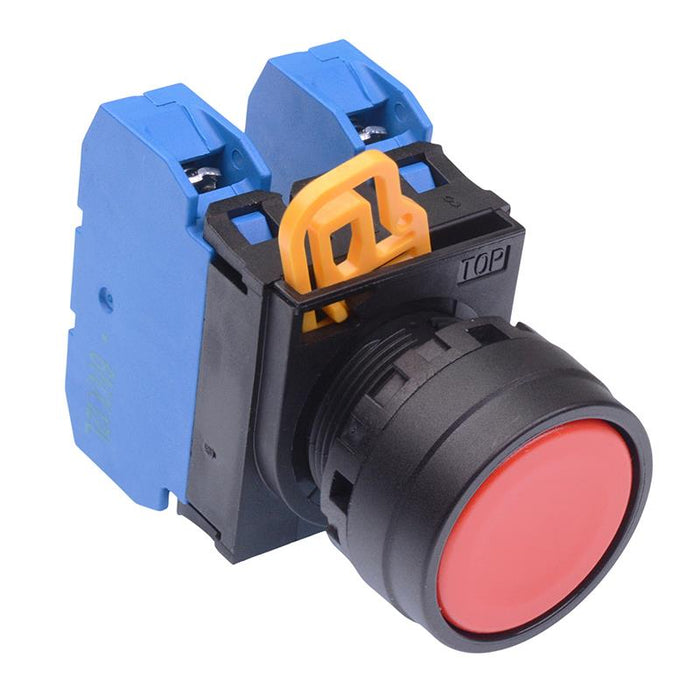

The YW1B-A1E20R is a red maintained push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.
2NO contacts Voltage rating: 600V Current rating: 10A 22mm panel cut-out 23.6mm button diameter IP65 protection rating Self cleaning contacts Interchangeable switch components Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
Specification
| Actuation | Maintained |
| Back Order Lead Time | 10 Days |
| Colour | Red |
| Contact Configuration | 2NO |
| Contact Rating | 2A 380V, 6A 240V |
| Current Rating | 10A |
| Electrical Life | 100,000 Cycles |
| Head Type | Flush |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | YW |
| Protection Level | IP65 |
| Rated Thermal Current | 10A |
| Terminal Type | Screw |
| Voltage Rating | 600V |
