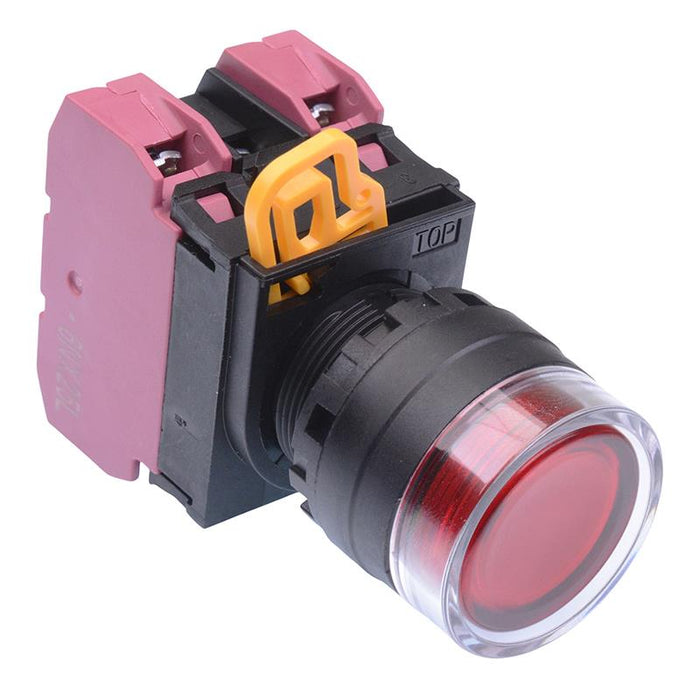

YW1L-AF2E02Q3R Red 12V illuminated 22mm Maintained Shrouded Push Button Switch 2NC IP65 IDEC
by IDEC
SKU 931695
MPN: YW1L-AF2E02Q3R
Availability:
25 in stock
Original price
£21.70
-
Original price
£21.70
Original price
£21.70
£21.70
-
£21.70
Current price
£21.70
The YW1B-AF2E02Q3R is an illuminated red maintained shrouded push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.
2NC contacts 12V illumination Voltage rating: 600V Current rating: 10A 22mm panel cut-out 23.6mm button diameter IP65 protection rating Self cleaning contacts Interchangeable switch components Dimensions: 64.8 x 30 x 41.4mm (length x width x height)
Specification
| Actuation | Maintained |
| Back Order Lead Time | 10 Days |
| Colour | Red |
| Contact Configuration | 2NC |
| Contact Rating | 2A 380V, 6A 240V |
| Current Rating | 10A |
| Electrical Life | 100,000 Cycles |
| Head Type | Extended with Shroud |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 12V |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | YW |
| Protection Level | IP65 |
| Rated Thermal Current | 10A |
| Terminal Type | Screw |
| Voltage Rating | 600V |
