YW4L-A2E01Q3G Green 12V illuminated 22mm Metal Bezel Maintained Push Button Switch NC IP65 IDEC
by IDEC
SKU 932355
MPN: YW4L-A2E01Q3G
Availability:
29 in stock
Original price
£21.54
-
Original price
£21.54
Original price
£21.54
£21.54
-
£21.54
Current price
£21.54

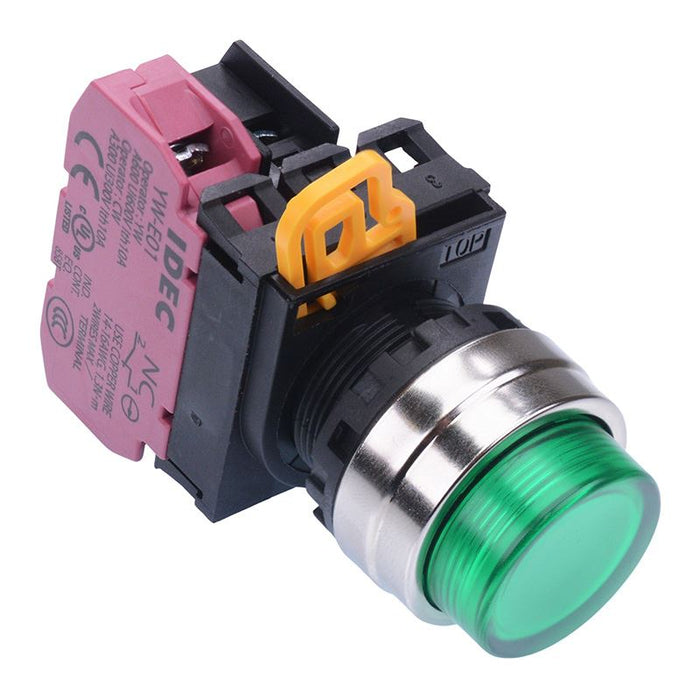

The YW4B-A2E01Q3G is an illuminated green maintained push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.
Metal Bezel
NC contacts
12V illumination
Voltage rating: 600V
Current rating: 10A
22mm panel cut-out
23.6mm button diameter
IP65 protection rating
Self cleaning contacts
Interchangeable switch components
Dimensions: 64.8 x 30 x 41.4mm (length x width x height)
Specification
| Actuation | Maintained |
| Back Order Lead Time | 10 Days |
| Colour | Green |
| Contact Configuration | 1NC |
| Contact Rating | 2A 380V, 6A 240V |
| Current Rating | 10A |
| Electrical Life | 100,000 Cycles |
| Head Type | Extended |
| Illuminated | Yes |
| Illumination Colour | Amber |
| Illumination Voltage | 12V |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | YW |
| Protection Level | IP65 |
| Terminal Type | Screw |
| Voltage Rating | 600V |
