CW1K-2AE10 2 Position Maintained Key Switch 1NO IP65 IDEC
by IDEC
SKU 934234
MPN: CW1K-2AE10
Availability:
Only 4 left!
Original price
£42.14
-
Original price
£42.14
Original price
£42.14
Inc VAT
£42.14
-
£42.14
Current price
£42.14
Inc VAT

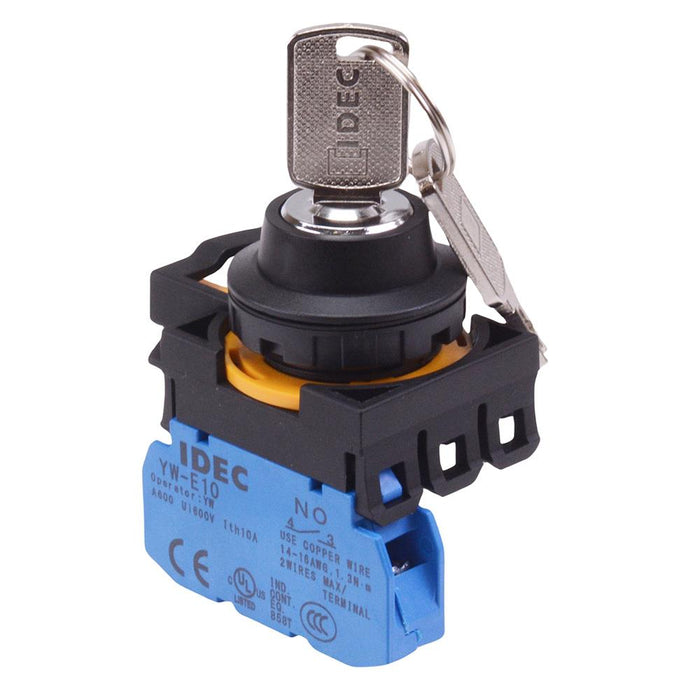

The CW1K-2AE10 is an industrial key switch featuring a sleek and compact design with only 39.9mm behind the panel. The switch incorporates IDEC's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.
2 positions 1NO contacts Screw contact blocks Maintained operation Key is removable in all positions 22.3mm mounting hole IP65 protection level 2.5mm thick bezel 39.9mm depth behind the panel Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
Specification
| Actuation | Maintained |
| Back order lead time | 10 Days |
| Contact configuration | 1NO |
| Contact rating | 8A 24VDC, 10A 120VAC, 6A 240VAC |
| Current rating | 10A |
| Head type | Key |
| Illuminated | No |
| Key index angle | 90° |
| Key withdrawal position | 1 & 2 |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +60°C |
| Panel cut out | 22.3mm |
| Product series | CW |
| Protection level | IP65 |
| Rated thermal current | 10A |
| Terminal type | Screw |
| Voltage rating | 300V |
