YW1L-A4E10Q4S Blue 24V illuminated 22mm Mushroom Maintained Push Button Switch NO IP65 IDEC
by IDEC
SKU 931845
MPN: YW1L-A4E10Q4S
Availability:
Out of stock
Sold out
Original price
£17.85
-
Original price
£17.85
Original price
£17.85
£17.85
-
£17.85
Current price
£17.85

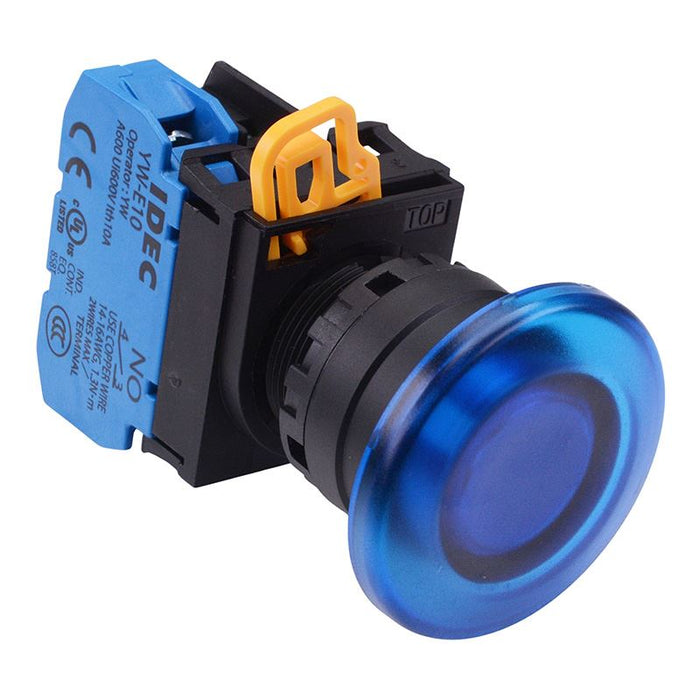

The YW1B-A4E10Q4S is an illuminated blue maintained push button switch with a mushroom head from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.
NO contacts
24V LED illumination
Voltage rating: 600V
Current rating: 10A
22mm panel cut-out
40mm button diameter
IP65 protection rating
Self cleaning contacts
Interchangeable switch components
Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
Specification
| Actuation | Maintained |
| Back Order Lead Time | 10 Days |
| Colour | Blue |
| Contact Configuration | 1NO |
| Contact Rating | 2A 380V, 6A 240V |
| Current Rating | 10A |
| Electrical Life | 100,000 Cycles |
| Head Type | Mushroom |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 24V |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | YW |
| Protection Level | IP65 |
| Rated Thermal Current | 10A |
| Terminal Type | Screw |
| Voltage Rating | 600V |
