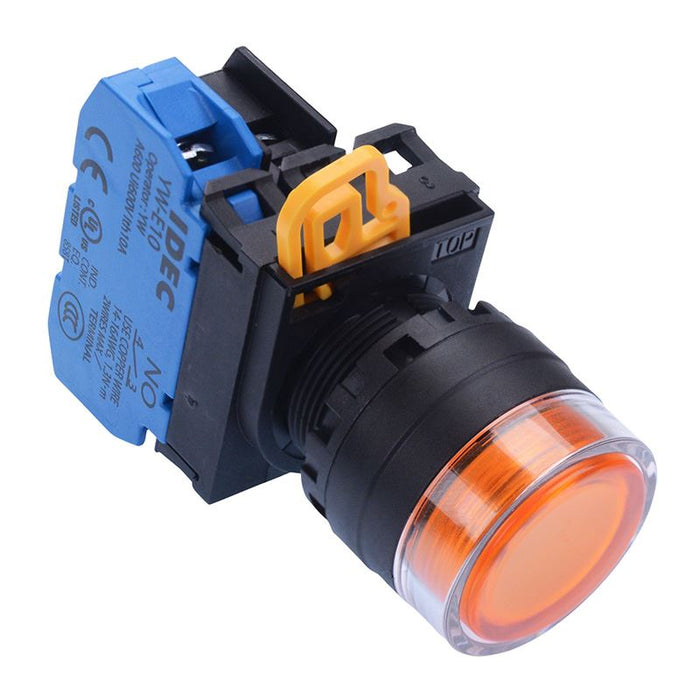

YW1L-MF2E10Q3A Amber 12V illuminated 22mm Momentary Shrouded Push Button Switch NO IP65 IDEC
by IDEC
SKU 931653
MPN: YW1L-MF2E10Q3A
Availability:
55 in stock
Original price
£16.41
-
Original price
£16.41
Original price
£16.41
£16.41
-
£16.41
Current price
£16.41
The YW1B-MF2E10Q3A is an illuminated amber momentary shrouded push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.
NO contacts
12V illumination
Voltage rating: 600V
Current rating: 10A
22mm panel cut-out
23.6mm button diameter
IP65 protection rating
Self cleaning contacts
Interchangeable switch components
Dimensions: 64.8 x 30 x 41.4mm (length x width x height)
Specification
Actuation | Momentary |
Back Order Lead Time | 10 Days |
Colour | Amber |
Contact Configuration | 1NO |
Contact Rating | 2A 380V, 6A 240V |
Current Rating | 10A |
Electrical Life | 100,000 Cycles |
Head Type | Extended with Shroud |
Illuminated | Yes |
Illumination Colour | Amber |
Illumination Voltage | 12V |
Mounting Style | Panel |
Number of Positions | 2 |
Operating Temperature | -20°C to +55°C |
Panel Cut Out | 22.3mm |
Panel Thickness | 0.8-6mm |
Product Series | YW |
Protection Level | IP65 |
Rated Thermal Current | 10A |
Terminal Type | Screw |
Voltage Rating | 600V |
