YW1L-V4E01Q4R 24V illuminated 22mm Emergency Stop Switch 1NC IDEC
by IDEC
SKU 485711
MPN: YW1L-V4E01Q4R
Availability:
8 in stock
Original price
£13.65
-
Original price
£13.65
Original price
£13.65
£13.65
-
£13.65
Current price
£13.65

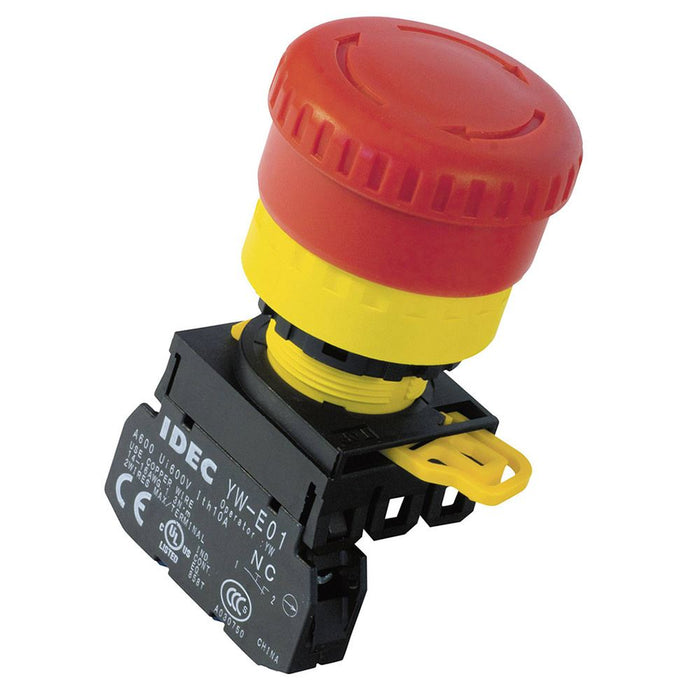

The YW1L-V4E01Q4R is a 24V illuminated 22mm E-stop switch manufactured by IDEC, featuring a 40mm mushroom head and 1NC contacts. The switch features an innovative space saving design and can be reset by either pulling or turning. The switch is suitable for a wide range of safety applications requiring a high quality solution.
1NC contacts
22mm panel hole diameter
IP65 protection level
24V AC/DC operating voltage
Screw terminals
40mm mushroom head
Contact rating: 10A 120V, 6A 240V, 2A 380V
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 10 Days |
| Colour | Red |
| Contact Configuration | 1NC |
| Contact Rating | 10A 120V, 6A 240V, 2A 380V |
| Current Rating | 10A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 24VAC/DC |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Panel Cut Out | 22.3mm |
| Product Series | YW |
| Protection Level | IP65 |
| Terminal Type | Screw |
| Voltage Rating | 600V |
