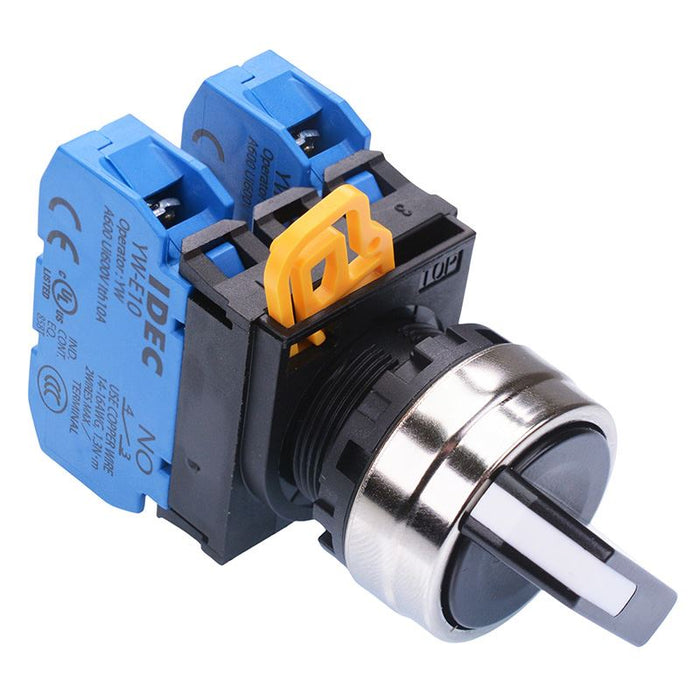

IDEC 22mm Metal Bezel 3 Position Maintained Selector Switch 2NO IP65 YW4S-3E20
by IDEC
SKU 932630
MPN: YW4S-3E20
Availability:
Only 1 left!
Original price
£14.17
-
Original price
£14.17
Original price
£14.17
Inc VAT
£14.17
-
£14.17
Current price
£14.17
Inc VAT
The YW4S-3E20 is a 3 position maintained selector switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.
Metal Bezel 2NO contacts Voltage rating: 600V Current rating: 10A 22mm panel cut-out 27.6mm knob diameter IP65 protection rating Self cleaning contacts Interchangeable switch components Dimensions: 69.8 x 30 x 41.4mm (length x width x height)
Specification
| Actuation | Maintained |
| Back order lead time | 10 Days |
| Contact configuration | 2NO |
| Contact rating | 2A 380V, 6A 240V |
| Current rating | 10A |
| Electrical life | 100,000 Cycles |
| Head type | Selector |
| Illuminated | No |
| Illumination colour | Amber |
| Key index angle | 45° |
| Mounting style | Panel |
| Number of positions | 3 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 22.3mm |
| Panel thickness | 0.8-6mm |
| Product series | YW |
| Protection level | IP65 |
| Terminal type | Screw |
| Voltage rating | 600V |
