YW4S-3E11 22mm Metal Bezel 3 Position Maintained Selector Switch 1NO-1NC IP65 IDEC
by IDEC
SKU 932634
MPN: YW4S-3E11
Availability:
23 in stock
Original price
£14.17
-
Original price
£14.17
Original price
£14.17
£14.17
-
£14.17
Current price
£14.17

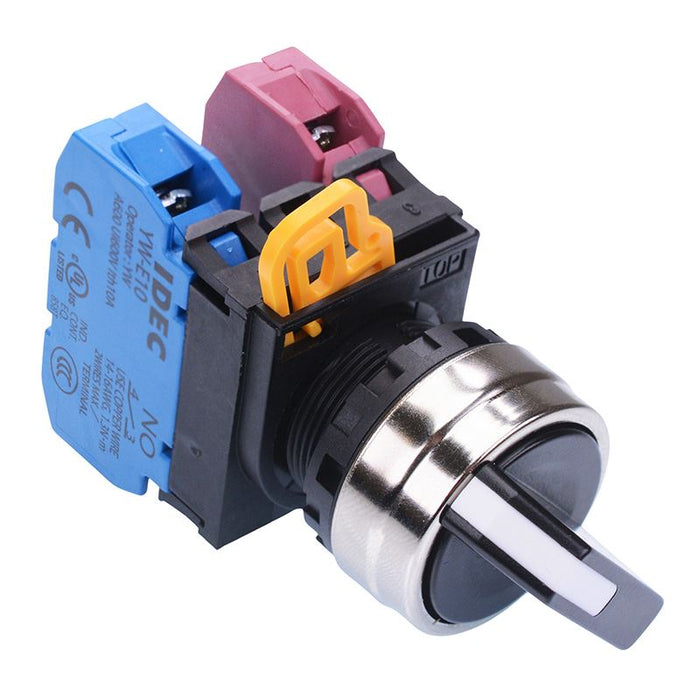

The YW4S-3E11 is a 3 position maintained selector switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.
Metal Bezel
1NO-1NC contacts
Voltage rating: 600V
Current rating: 10A
22mm panel cut-out
27.6mm knob diameter
IP65 protection rating
Self cleaning contacts
Interchangeable switch components
Dimensions: 69.8 x 30 x 41.4mm (length x width x height)
Specification
| Actuation | Maintained |
| Back Order Lead Time | 10 Days |
| Contact Configuration | 1NO-1NC |
| Contact Rating | 2A 380V, 6A 240V |
| Current Rating | 10A |
| Electrical Life | 100,000 Cycles |
| Head Type | Selector |
| Illuminated | No |
| Illumination Colour | Green |
| Key Index Angle | 45° |
| Mounting Style | Panel |
| Number of Positions | 3 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | YW |
| Protection Level | IP65 |
| Terminal Type | Screw |
| Voltage Rating | 600V |
