YW4K-2AE30 22mm Metal Bezel 2 Position Maintained Key Switch 3NO IP65 IDEC
by IDEC
SKU 932648
MPN: YW4K-2AE30
Availability:
15 in stock
Original price
£30.26
-
Original price
£30.26
Original price
£30.26
£30.26
-
£30.26
Current price
£30.26

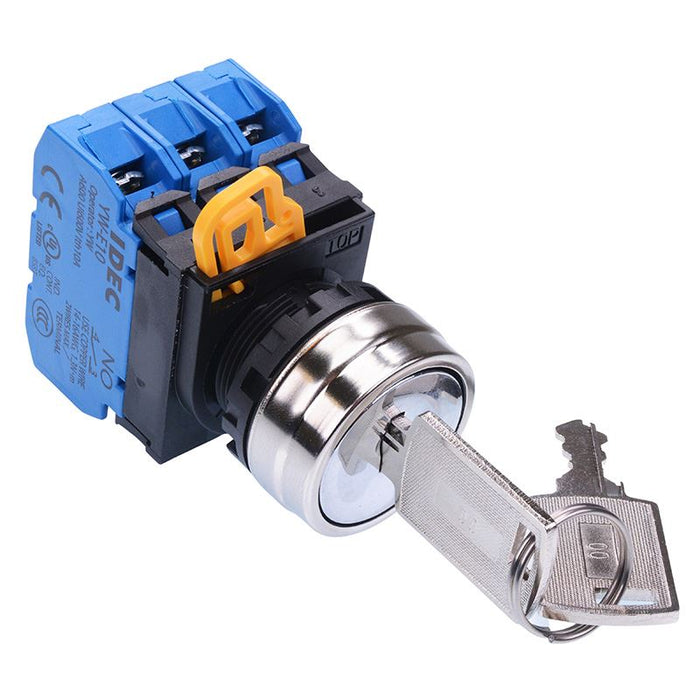

The YW4K-2AE30 is a 2 position maintained key switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.
Metal Bezel
3NO contacts
Voltage rating: 600V
Current rating: 10A
22mm panel cut-out
IP65 protection rating
Comes with 2 keys
Self cleaning contacts
Interchangeable switch components
Dimensions: 83.8 x 30 x 41.4mm (length x width x height)
Specification
| Actuation | Maintained |
| Back Order Lead Time | 10 Days |
| Contact Configuration | 3NO |
| Contact Rating | 2A 380V, 6A 240V |
| Current Rating | 10A |
| Electrical Life | 100,000 Cycles |
| Head Type | Key |
| Illuminated | No |
| Illumination Colour | Blue |
| Key Index Angle | 90° |
| Key Withdrawal Position | 1 & 2 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | YW |
| Protection Level | IP65 |
| Terminal Type | Screw |
| Voltage Rating | 600V |
