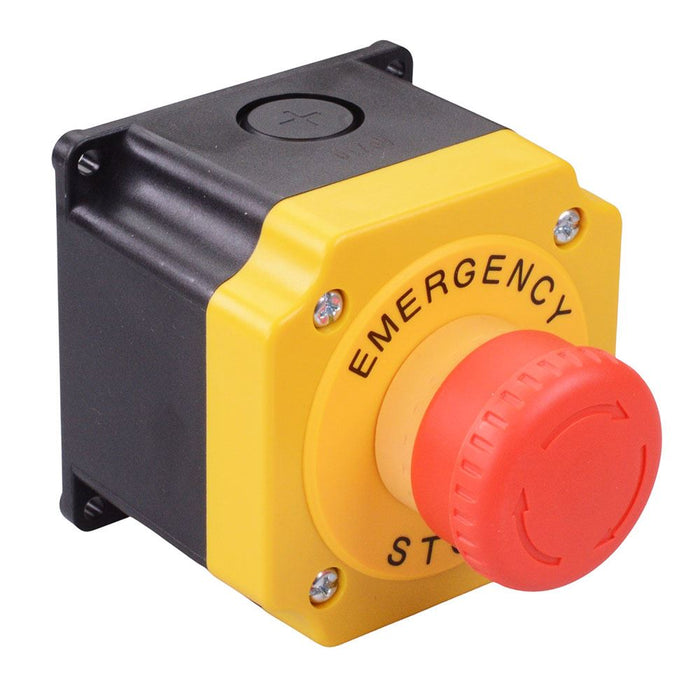

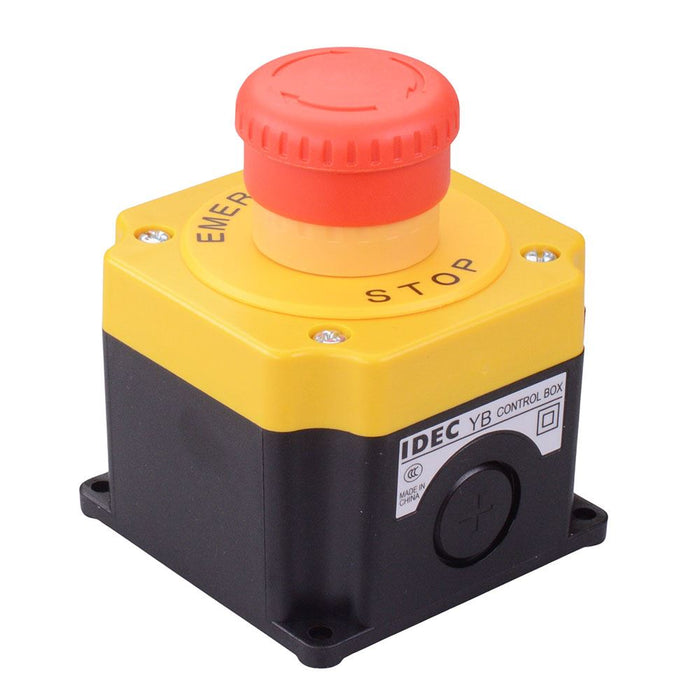

IDEC 22mm Emergency Stop Switch Control Box with Nameplate 2NC YW1B-V4E02R-Y1
by IDEC
SKU 486073
MPN: YB1W-YW1B-V4E02R-Y1
Availability:
30 in stock
Original price
£26.15
-
Original price
£26.15
Original price
£26.15
£26.15
-
£26.15
Current price
£26.15
The YB1W-YW1B-V4E02R-Y1 is a 22mm E-stop switch manufactured by IDEC, featuring 2NC contacts and nameplate. The switch features can be reset by either pulling or turning and comes complete with yellow/black control box. The switch is suitable for a wide range of safety applications requiring a high quality solution.
2NC contacts
22mm panel hole diameter
IP65 protection level
Screw terminals
40mm mushroom head
Contact rating: 10A 120V, 6A 240V, 2A 380V
Box dimensions: 76 x 76 x 59.5mm (length x width x height)
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 10 Days |
| Colour | Red |
| Contact Configuration | 2NC |
| Contact Rating | 10A 120V, 6A 240V, 2A 380V |
| Current Rating | 10A |
| Illuminated | No |
| Number of Positions | 2 |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | YW |
| Protection Level | IP65 |
| Terminal Type | Screw |
| Voltage Rating | 600V |
