Heavy Duty Battery Cut Off Isolator Switch 300A
SKU 486910
MPN: 486910
Availability:
41 in stock
Original price
£13.63
-
Original price
£13.63
Original price
£13.63
£13.63
-
£13.63
Current price
£13.63

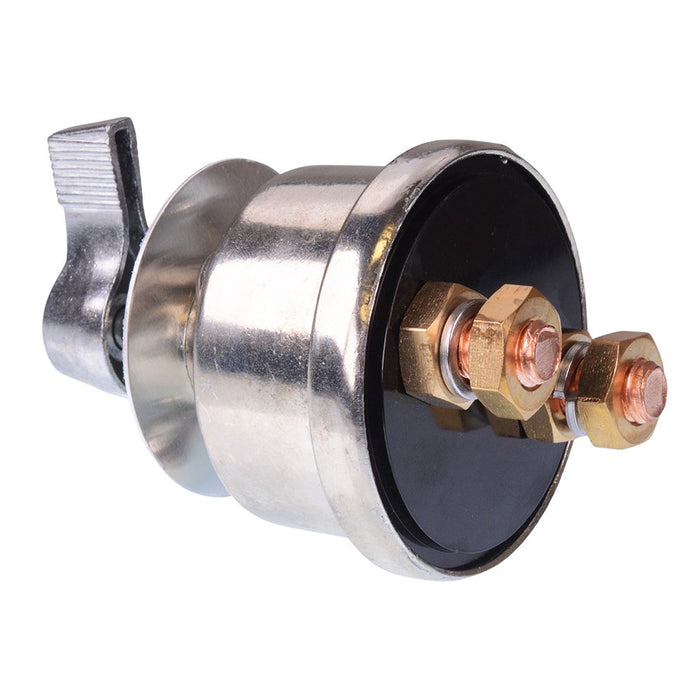

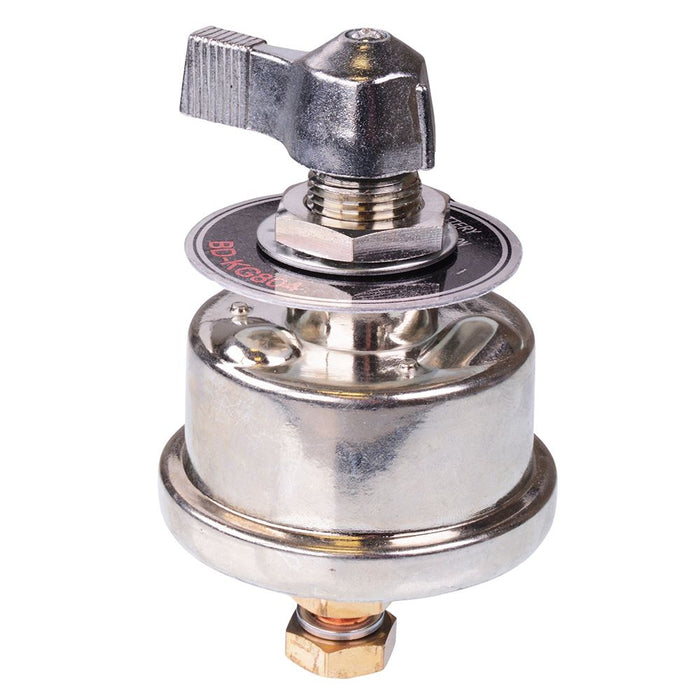

Heavy duty battery disconnect switch featuring a sturdy construction, rated up to 300A continuous current. The switch features SPST contacts and is suitable for 12V-48V applications including automotive, boats, trucks etc.
SPST contacts 2 x M10 studs Metal housing 300A maximum continuous current 1000A maximum intermittent current Dimensions: 107 x 35mm (height x diameter)
Specification
| Back Order Lead Time | 40 Days |
| Continuous Rating | 300A |
| Current Rating | 300A |
| Electrical Life | 10,000 Cycles |
| Mounting Style | Chassis Mount |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Switch Operation | Off-On |
| Terminal Type | M10 Studs |
| Voltage Rating | 48VDC |
