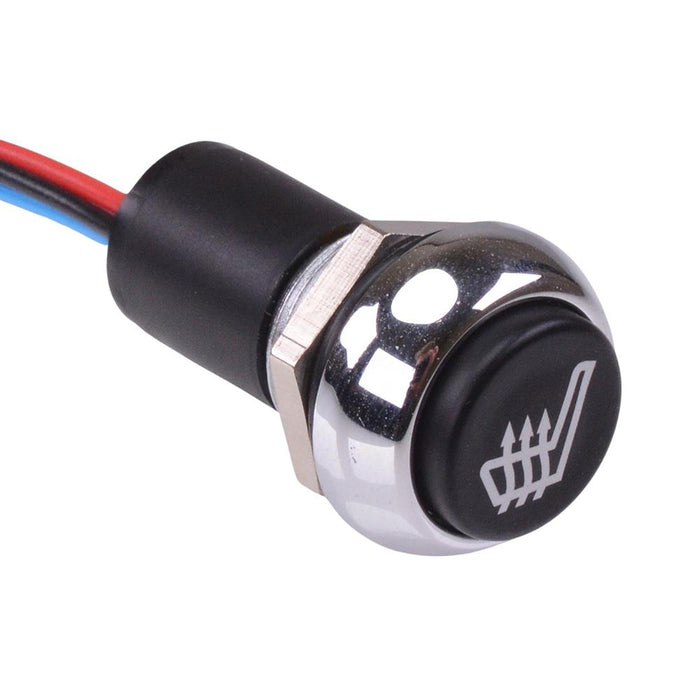

Heated Seat illuminated Automotive Momentary 12mm Push Button Switch SPST IP67
by APEM
SKU 487409
MPN: IPP3FAD2R0Y101X1223-19
Availability:
49 in stock
Original price
£20.53
-
Original price
£20.53
Original price
£20.53
£20.53
-
£20.53
Current price
£20.53
The IPP3FAD2R0Y101X1223-19 is a momentary round push button switch with a 12mm chrome bushing and illuminated with a yellow LED. The switch is prewired with 150mm flying leads and features SPST contacts. Suitable for automotive applications.
- Heated seat illuminated symbol
- Momentary NO operation
- Yellow LED
- LED forward voltage: 2.1V
- LED forward current: 20mA
- 150mm flying leads
- SPST contacts
- 12mm bushing
- Sealed to IP67
- Panel cut-out: 13.6mm
- Solder lug terminals
- Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC
- Panel thickness: 1.5-4mm
- Dimensions: 29.8 x 17.5mm (height x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Silver |
| Contact Rating | 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC |
| Current Rating | 5A @ 28VDC |
| Illuminated | Yes |
| Illumination Colour | Yellow |
| Illumination Voltage | 2.1VDC |
| Material | Zinc Diecast |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 13.6mm |
| Panel Thickness | 1.5-4mm |
| Product Series | IP |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Flying Leads |
| Voltage Rating | 48VAC/DC |
