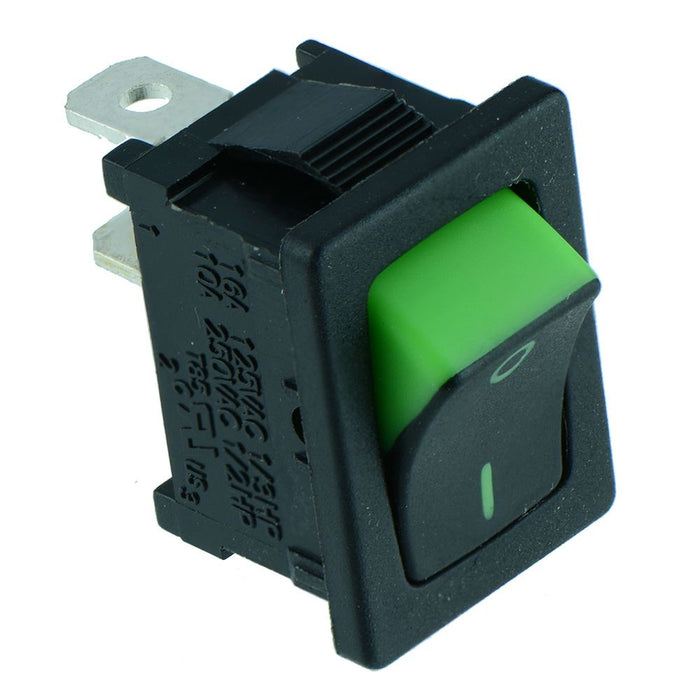

Green Rectangle ‘Visi On’ Rocker Switch SPST R13-66A5-02
by SCI
SKU 551706
MPN: R13-66A5-02 Green
Availability:
676 in stock
Original price
£0.85
-
Original price
£0.85
Original price
£0.85
£0.85
-
£0.85
Current price
£0.85
Rectangle rocker switch with SPST contacts and green bi-colour actuator suitable for a range of applications.
SPST contacts
On-Off action
Snap-in mounting
4.8mm silver plated brass contacts
Panel cut-out: 19.2 x 13mm
Maximum current: 10A
Maximum voltage: 250VAC
SCI R13-66 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Colour | Green |
| Contact Configuration | SPST |
| Contact Rating | 10A 250VAC |
| Current Rating | 10A |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 19.2 x 13mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
