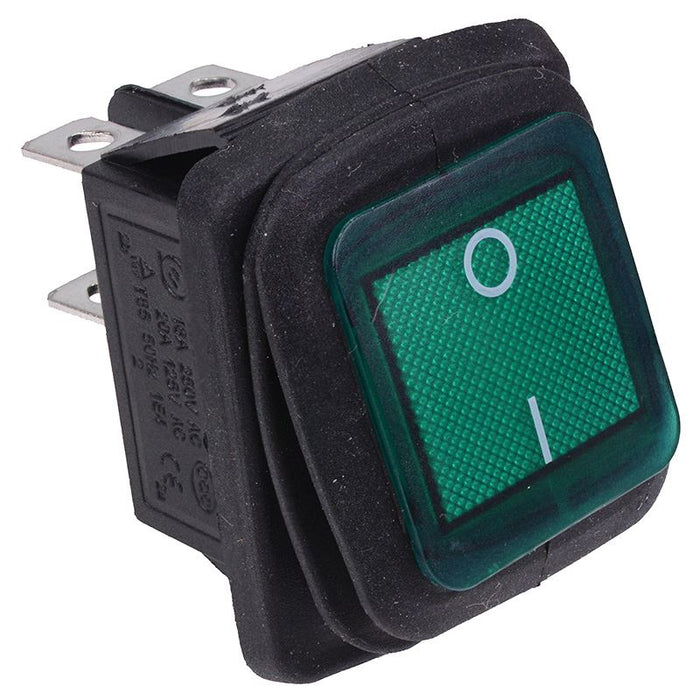

Green Rectangle Illuminated On-Off Waterproof Rocker Switch 20A DPST IP67
SKU 482830
MPN: 482830
Availability:
71 in stock
Original price
£1.67
-
Original price
£1.67
Original price
£1.67
£1.67
-
£1.67
Current price
£1.67
Rectangle On-Off waterproof rocker switch with illuminated green button. The switch features IP67 protection and is protected from dust and water ingress.
On-Off action 16A 250VAC Rating Green neon illumination DPST Contacts 28.5 x 21.5mm panel cut-out Quick connect terminals
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Colour | Green |
| Contact Configuration | DPST |
| Contact Rating | 16A 250VAC, 20A 125VAC |
| Current Rating | 20A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 230VAC |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 28.5 x 21.5mm |
| Protection Level | IP67 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
