Green LED On-On Latching 16mm Vandal Resistant Push Button Switch SPDT

SKU 481592

MPN: 481592

Availability:
47 in stock
Original price £0
Original price £6.23 - Original price £6.23
Original price
Current price £6.23(inc. VAT)
£6.23 - £6.23
Current price £6.23
 More payment options

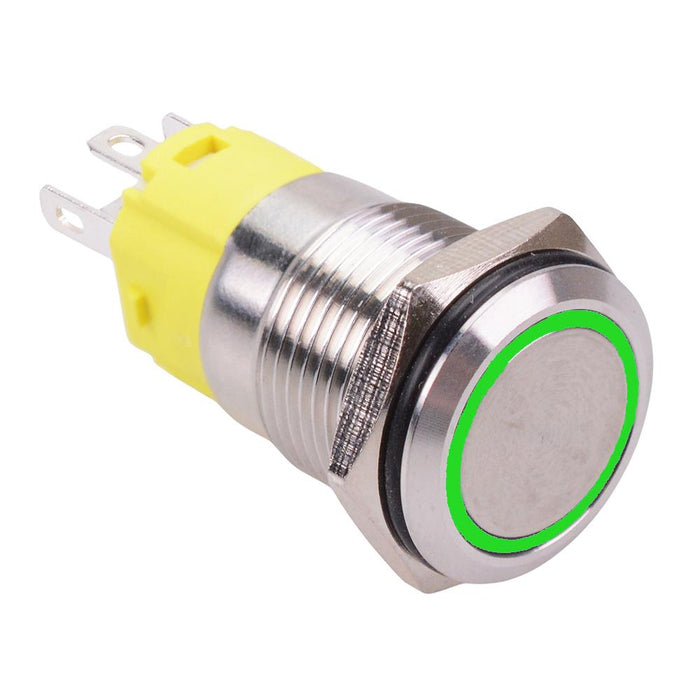

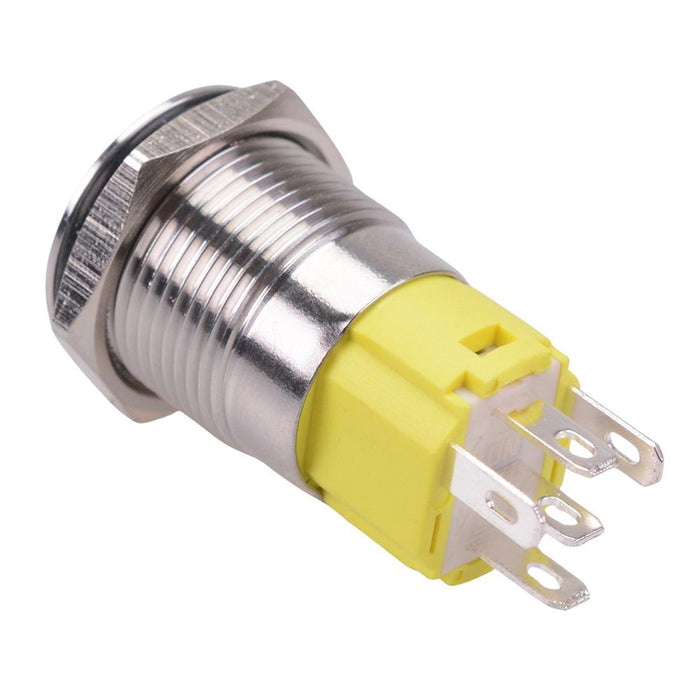

Latching vandal resistant push button switch featuring a green 12V LED and SPDT contacts. The switch is manufactured from stainless steel and features IP65 protection rating, making it suitable for a wide range of automotive and other 12V applications.

  • Latching action
  • Green LED
  • 12V illumination voltage
  • IP65 protection rating
  • 16mm panel cut-out diameter
  • NO/NC contacts
  • 2.8mm terminals
  • Rating: 3A 250VAC
  • Dimensions: 36.7 x 18mm (length x diameter)
  • Specification
    Actuation Latching
    Back Order Lead Time 30 Days
    Colour Green
    Contact Configuration SPDT
    Contact Rating 3A 250VAC
    Current Rating 3A
    Electrical Life 50,000 Cycles
    Illuminated Yes
    Illumination Colour Green
    Illumination Voltage 12VDC
    Material Stainless Steel
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -25°C to +85°C
    Panel Cut Out 16mm
    Protection Level IP65
    Switch Operation On-On
    Terminal Type Quick Connect
    Voltage Rating 250VAC
