Green LED On-Off Toggle Switch SPST
SKU 110003
MPN: 110003
Availability:
20 in stock
Original price
£2.04
-
Original price
£2.04
Original price
£2.04
£2.04
-
£2.04
Current price
£2.04

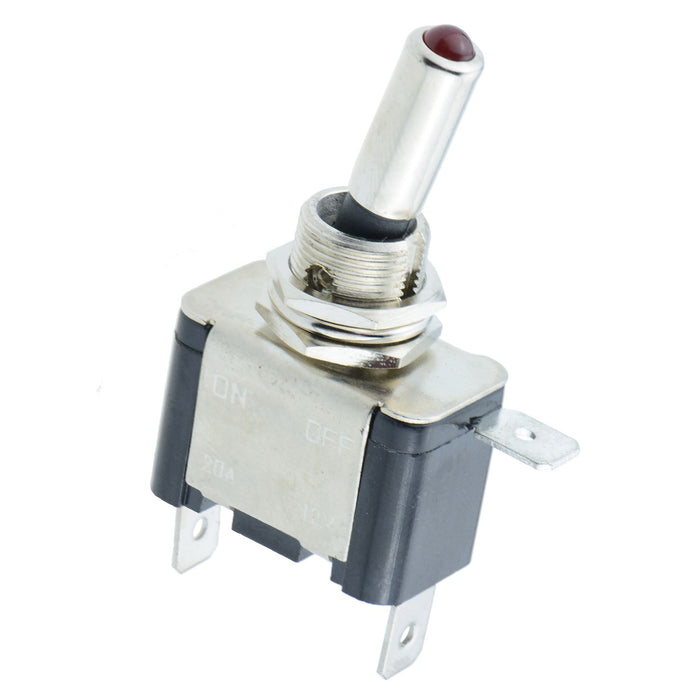

SPST toggle switch with an LED tip which illuminates when the switch is in the 'On' position. The switch is suitable for panel mounting and is commonly used for automotive applications.
On-Off operation SPST contacts 6.3mm quick connect terminals LED requires 12VDC illumination Panel cut-out diameter: 12mm Dimensions: 51.4 x 16 x 28mm (Height x Width x Length) Maximum Panel Thickness: 5mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Colour | Green |
| Contact Configuration | SPST |
| Contact Rating | 25A 12VDC |
| Current Rating | 25A |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 12VDC |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
