Green 12V illuminated On-Off Toggle Switch SPST 20A
SKU 486936
MPN: 486936
Availability:
283 in stock
Original price
£0.89
-
Original price
£0.89
Original price
£0.89
£0.89
-
£0.89
Current price
£0.89

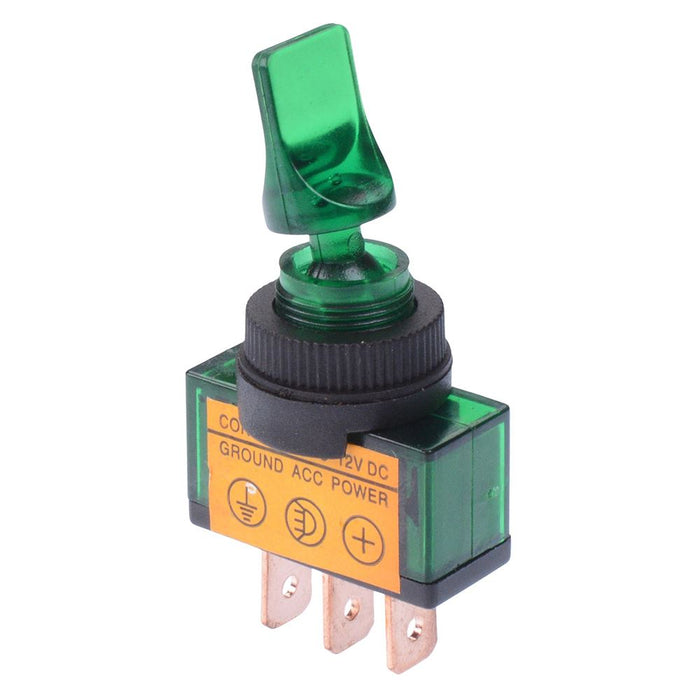

Green illuminated toggle switch featuring SPST contacts and On-Off operation. The switch requires a 12mm panel cut-out and is suitable for 12V applications including automotive.
Green 12V illumination On-Off operation SPST contacts Rating: 20A 12V 6.35mm quick connect terminals Panel cut-out: 12mm Dimensions: 54 x 26.2 x 12mm (height x length x width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Colour | Green |
| Contact Configuration | SPST |
| Contact Rating | 20A 12VDC |
| Current Rating | 20A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 12VDC |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
