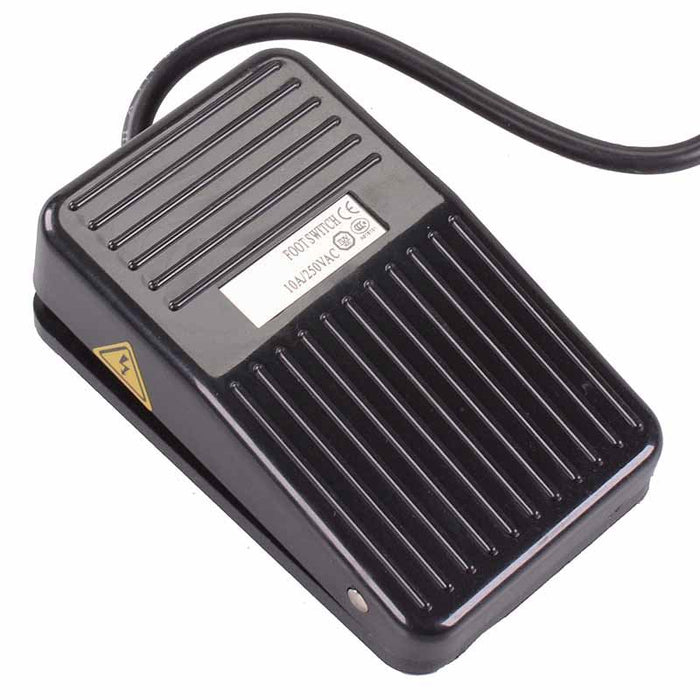

Foot Switch SPDT 10A 250VAC
SKU 482565
MPN: 482565
Availability:
174 in stock
Original price
£3.92
-
Original price
£3.92
Original price
£3.92
£3.92
-
£3.92
Current price
£3.92
Foot switch featuring changeover SPDT contacts and momentary function. The switch features a thermoplastic housing and rubber feat, suitable for use with industrial automation equipment.
NO / NC contacts
Rating: 10A 250VAC
Housing material: ABS
3 x 0.5mm² Cable (25cm length)
Dimensions: 100 x 61 x 34mm (Length x Width x Height)
Specification
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPDT |
| Contact Rating | 10A 250VAC |
| Current Rating | 10A |
| Electrical Life | 100,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | ABS |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +70°C |
| Protection Level | IP54 |
| Switch Operation | On-On |
| Terminal Type | Cable |
| Voltage Rating | 250VAC |
