EB40201S2-999 12V DC Brushless Axial Fan 40 x 40 x 20mm

by Sunon
SKU 480027

MPN: EE40201S2-1000U-999

Availability:
Out of stock
Sold out
Original price £0
Original price £7.69 - Original price £7.69
Original price
Current price £7.69(inc. VAT)
£7.69 - £7.69
Current price £7.69
 More payment options

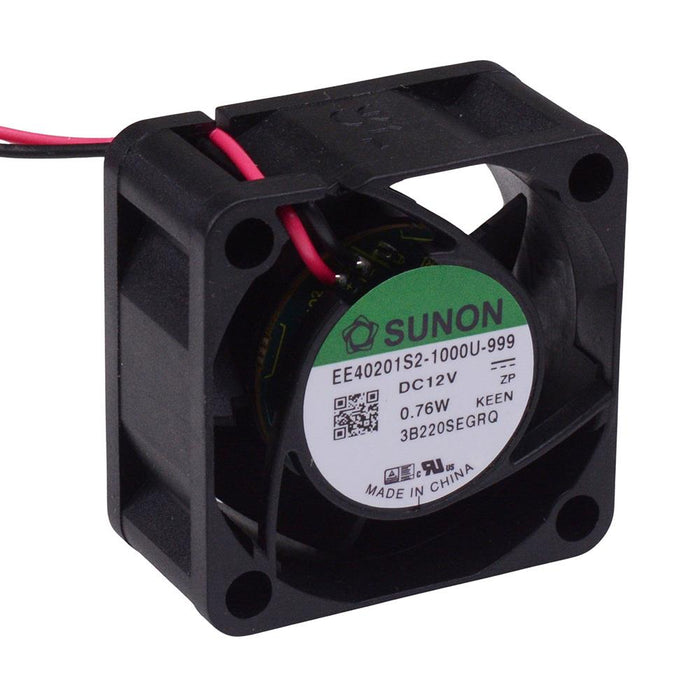

EB40201S2-999 12V axial fan featuring a brushless motor and sleeve bearing providing excellent reliability and improved performance. The fan is housed in a 40 x 40 x 20mm thermoplastic frame and is terminated using the wire leads.

  • Supply voltage: 12VDC
  • Operating voltage: 4.5-13.8VDC
  • Power consumption: 0.76W
  • Current rating: 0.063A
  • Noise level: 21dBA
  • Fan speed: 6200rpm
  • Slide bearing
  • Specification
    Back Order Lead Time 5 Days
    Colour Black
    Current Rating 0.063A
    Efficiency 13.01m3/h
    Height 40mm
    Length 40mm
    Material Thermoplastic
    Noise Level 21dBA
    Operating Temperature -10°C to 70°C
    Operating Voltage 4.5V to 13.8VDC
    Power Consumption 0.76W
    Rotational Speed 6000rpm
    Supply Voltage 12VDC
    Type of Bearing Slide
    Width 20mm
