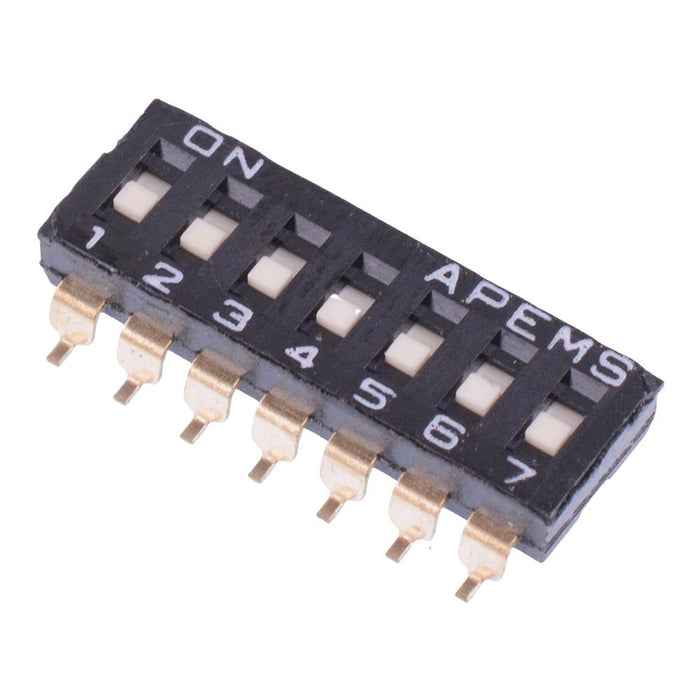

DMR07TV/TR APEM 7-Way Surface Mount 2.54mm DIP Switch SPST
by APEM
SKU 487583
MPN: DMR07TV/TR
Availability:
700 in stock
Original price
£0.70
-
Original price
£0.70
Original price
£0.70
£0.70
-
£0.70
Current price
£0.70
The DMR07TV/TR is a 7 way surface mount DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning contacts and 25mA 24VDC rating, suitable for PCB applications.
Recessed actuator 7 ways Switch rating: 25mA 24VDC Contact rating: 100mA 50VDC Gold plated terminals 2.54mm pitch Tape seal Tape packaging
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Material | Gold Plated |
| Contact Rating | 100mA 50VDC |
| Current Rating | 25mA |
| Electrical Life | 2,000 Cycles |
| Material | UL94-V0 |
| Mounting Style | Surface Mount |
| Number of Positions | 2 |
| Number of Ways | 7 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 2.54mm |
| Product Series | DM |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
