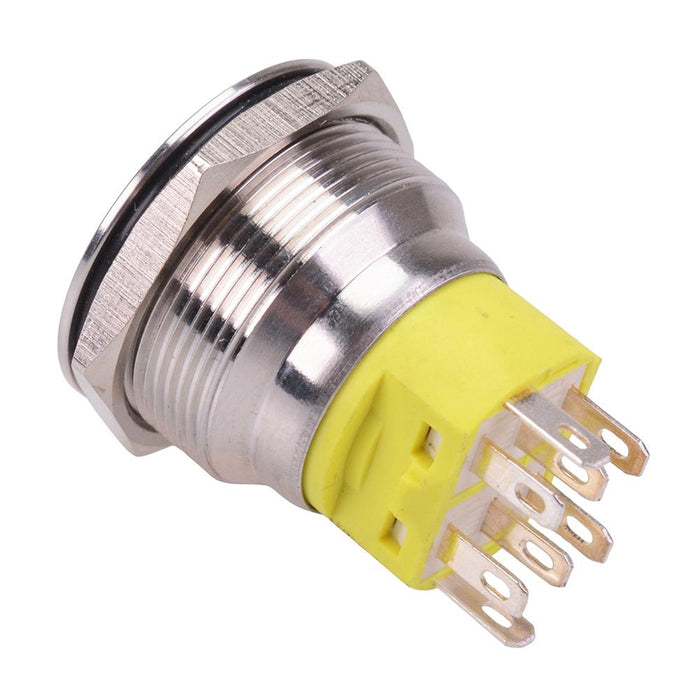

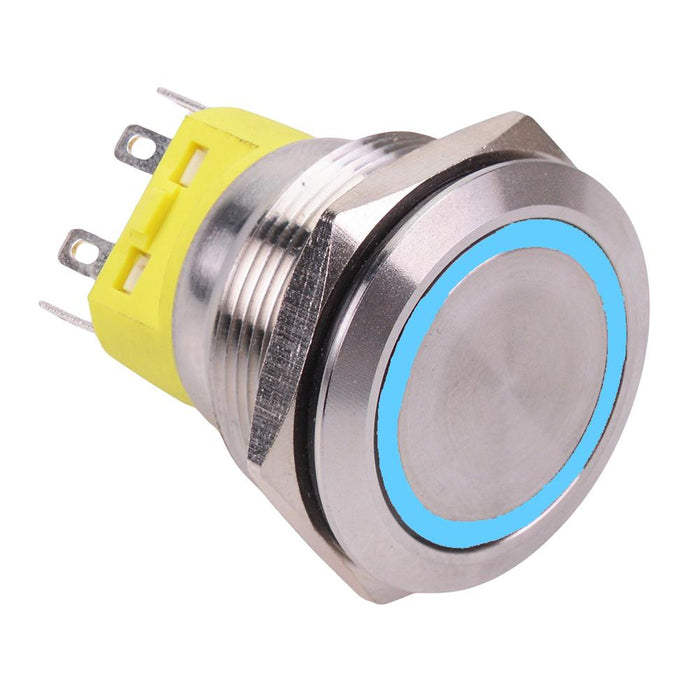

Blue On-(On) 25mm Vandal Push Button Switch 2NO/2NC
SKU 483348
MPN: 483348
Availability:
49 in stock
Original price
£11.25
-
Original price
£11.25
Original price
£11.25
Inc VAT
£11.25
-
£11.25
Current price
£11.25
Inc VAT
Vandal resistant 25mm momentary push button switch manufactured from stainless steel, featuring a blue LED and 2NO/2NC contacts. The switch features IP67 protection and is suitable for 12V applications.
Momentary On-(On) action Blue LED 12V illumination voltage IP67 protection rating 25mm panel cut-out diameter 2NO/2NC contacts 2.8mm terminals Rating: 5A 250VAC
Specification
Actuation | Momentary |
Back order lead time | 30 Days |
Colour | Blue |
Contact configuration | DPDT |
Contact rating | 5A 250VAC |
Current rating | 5A |
Electrical life | 50,000 Cycles |
Illuminated | Yes |
Illumination colour | Blue |
Illumination voltage | 12VDC |
Material | Stainless Steel |
Mounting style | Panel |
Number of positions | 2 |
Operating temperature | -25°C to +85°C |
Panel cut out | 25mm |
Protection level | IP67 |
Switch operation | On-(On) |
Terminal type | Solder |
Voltage rating | 250VAC |
