Blue On-On 25mm Black Vandal Latching Push Button Switch DPDT 12V
SKU 486523
MPN: 486523
Availability:
Only 1 left!
Original price
£11.82
-
Original price
£11.82
Original price
£11.82
£11.82
-
£11.82
Current price
£11.82

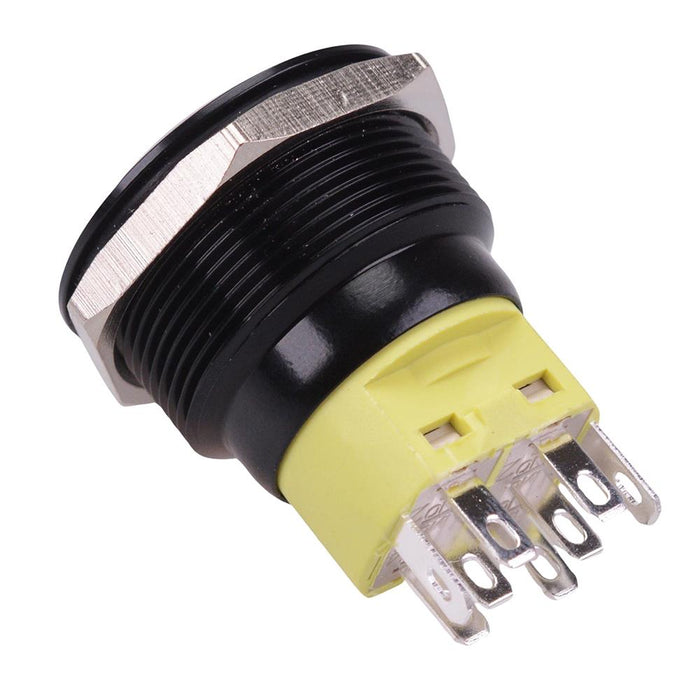

Latching vandal resistant 25mm push button switch featuring a blue 12V LED and DPDT contacts. The switch is manufactured from zinc and features IP67 protection rating, making it suitable for a wide range of automotive and other 12V applications.
Latching action Blue LED 12V illumination voltage IP67 protection rating 25mm panel cut-out diameter 2NO/2NC contacts 2.8mm terminals Rating: 5A 250VAC Dimensions: 35.6 x 28mm (length x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 30 Days |
| Contact Configuration | SPDT |
| Contact Rating | 5A 250VAC |
| Current Rating | 5A |
| Electrical Life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Illumination Voltage | 12VDC |
| Material | Zinc |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 25mm |
| Protection Level | IP67 |
| Switch Operation | On-On |
