Blue LED 19mm Latching Vandal Resistant Push Button Switch SPDT 21A 12V
by Langir
SKU 482237
MPN: L19BFZ321SRB12V
Availability:
38 in stock
Original price
£15.02
-
Original price
£15.02
Original price
£15.02
£15.02
-
£15.02
Current price
£15.02

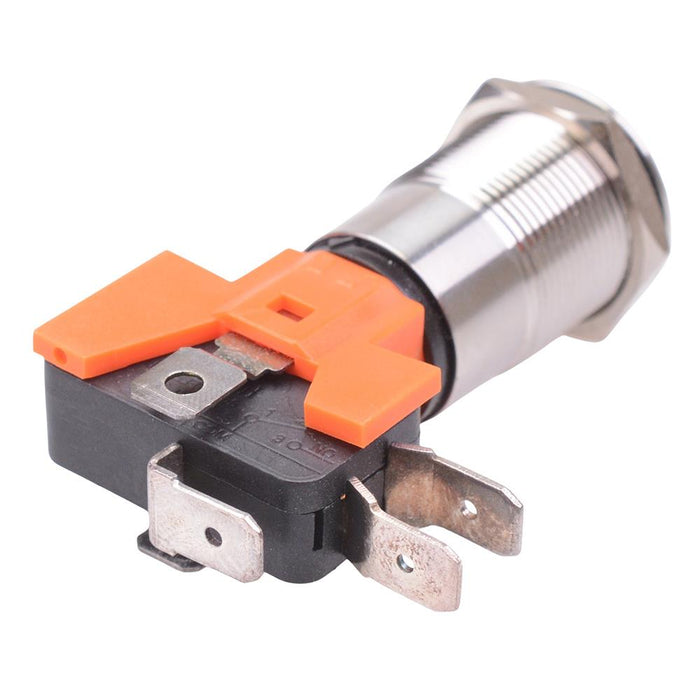

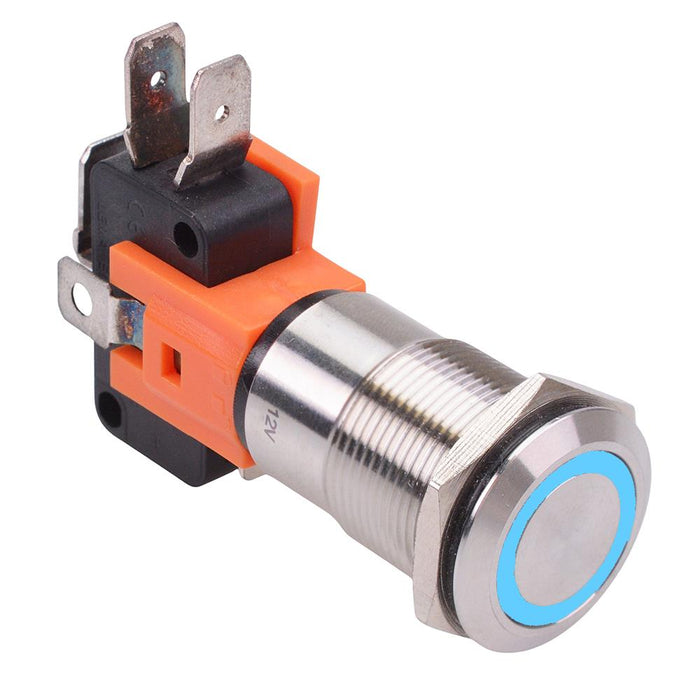

Latching 19mm vandal resistant push button switch featuring a 21A current rating and blue 12V LED. The switch features SPDT contacts and a removable microswitch making it suitable for high current 12V applications including automotive.
Latching On-On action NO/NC contacts Blue LED 12V illumination voltage IP65 protection rating 19mm panel cut-out diameter Stainless steel body Removable microswitch 6.35mm quick connect terminals Rating: 21A 250VAC
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Colour | Blue |
| Contact Configuration | SPDT |
| Contact Rating | 21A 250VAC |
| Current Rating | 21A |
| Electrical Life | 50,000+ Cycles |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Illumination Voltage | 12VDC |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 19mm |
| Protection Level | IP65 |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
