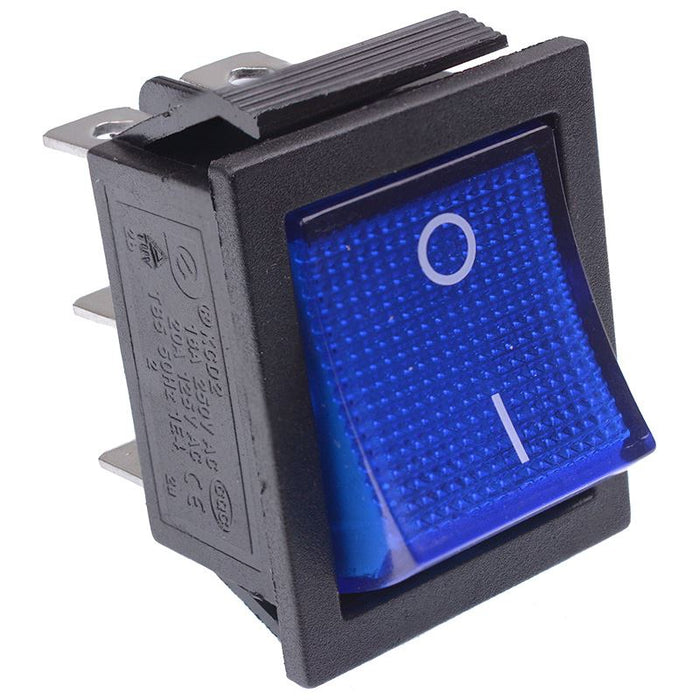

Blue illuminated On-On Rectangle Rocker Switch 220V DPDT
SKU 551799
MPN: 551799
Availability:
249 in stock
Original price
£0.83
-
Original price
£0.83
Original price
£0.83
£0.83
-
£0.83
Current price
£0.83
illuminated rectangle rocker switch with DPDT contacts suitable for domestic, industrial and commercial applications.
Blue illumination On-on action DPDT contacts 220VAC illumination 6*6.3mm quick connect terminals 28.5 x 21.5mm panel cut-out Maximum current: 15A Maximum voltage: 250VAC Dimensions: 35.5 x 31 x 25.3mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Colour | Blue |
| Contact Configuration | DPDT |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Illumination Voltage | 220VAC |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 28.5 x 21.5mm |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
