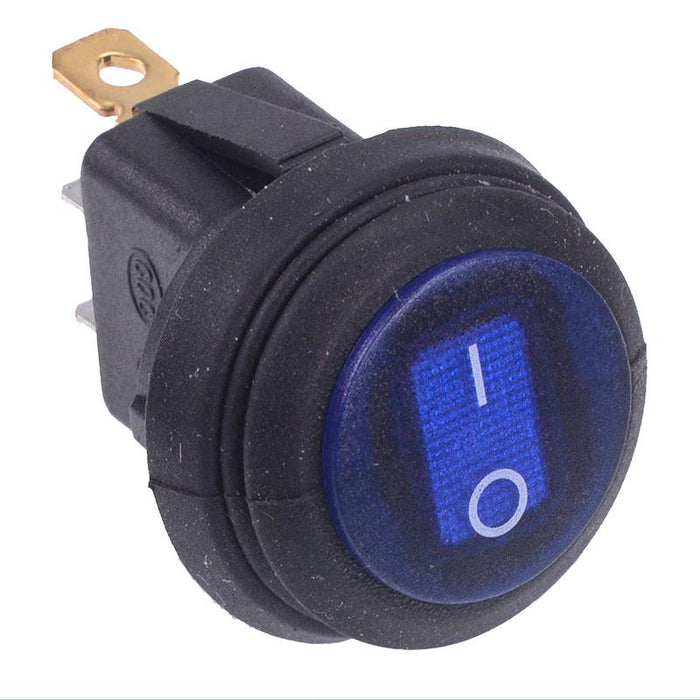

Blue Illuminated On-Off Waterproof Rocker Switch SPST 230V
SKU 482833
MPN: 482833
Availability:
122 in stock
Original price
£1.32
-
Original price
£1.32
Original price
£1.32
£1.32
-
£1.32
Current price
£1.32
Waterproof circular rocker switch featuring blue 230V illumination and snap-in mounting. The switch offers a high switching current in a compact design, making them suitable for a wide range of AC applications.
On-Off action SPST contacts 230V illumination 4.8mm quick connect terminals Rating: 10A 125VAC, 6A 250VAC 20mm panel cut-out diameter Dimensions: 34.2 x 23mm (Height x Diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Contact Configuration | SPST |
| Contact Rating | 6A 250VAC, 10A 125VAC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Illumination Voltage | 230VAC |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 20mm |
| Protection Level | IP65 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
