Blue 12V Rectangle On-Off Rocker Switch SPST 20A
SKU 486944
MPN: 486944
Availability:
191 in stock
Original price
£0.94
-
Original price
£0.94
Original price
£0.94
£0.94
-
£0.94
Current price
£0.94

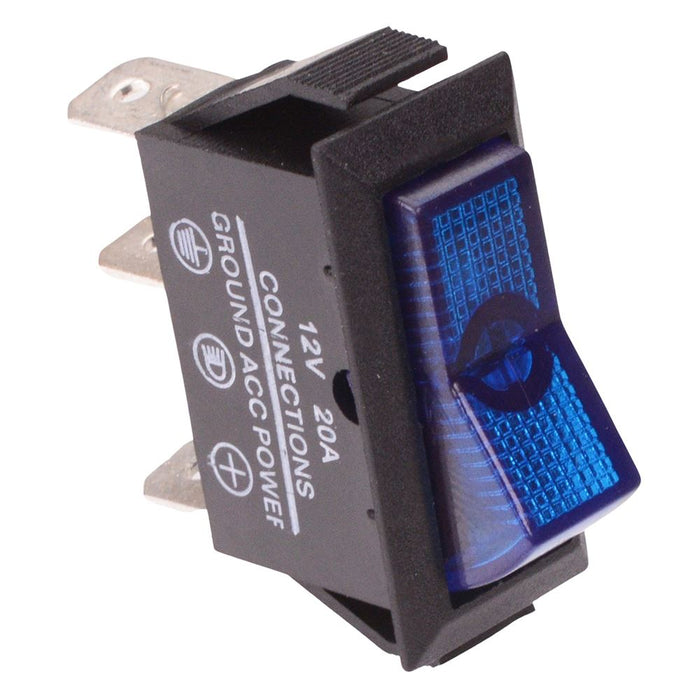

Blue rectangular rocker switch featuring SPST contacts 20A current rating. The switch features 6.35mm quick connect terminals and 12V illumination, making it suitable for automotive applications.
Blue 12V illumination On-Off operation SPST contacts Rating: 20A 12V 6.35mm quick connect terminals Panel cut-out: 27 x 12mm Dimensions: 34.4 x 30.4 x 14mm (height x length x width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Colour | Blue |
| Contact Configuration | SPST |
| Contact Rating | 20A 12VDC |
| Current Rating | 20A @ 12VDC |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Illumination Voltage | 12VDC |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 27 x 12mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
