Black On-On 2 Way 19mm Key Switch DPDT 4A LK6SGB126M3
by APEM
SKU 485820
MPN: LK6SGB126M3
Availability:
50 in stock
Original price
£17.88
-
Original price
£17.88
Original price
£17.88
£17.88
-
£17.88
Current price
£17.88

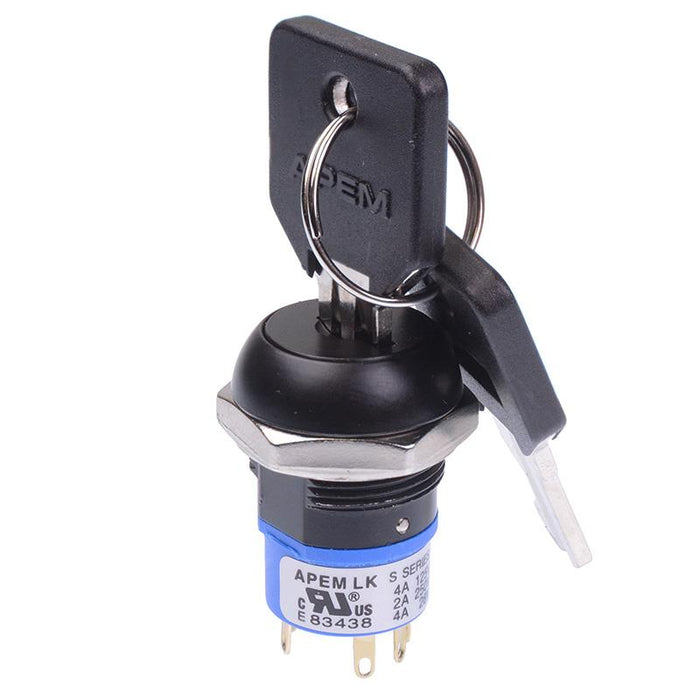

The LK6SGB126M3 is a high quality key operated switch from the LK series manufactured by APEM. The switch features DPDT contacts and 2 maintained positions with key withdrawal in position 1&2. The switch has a black finish and is suitable for 19mm panel cut-out applications requiring a reliable switching solution.
2 positions Maintained switching DPDT contacts Black finish Key withdrawal in position 1&2 Panel cut-out: 19mm Indexing: 90° Contact rating: 4A at 125 VAC or 28VDC, 2A at 250 VAC Mechanical and electrical life: 6000 cycles at full load Dimensions: 28.8 x 22mm (length x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Black |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Copper Alloy |
| Contact Rating | 4A 125VAC / 28VDC, 2A 250VAC |
| Current Rating | 4A @ 125VAC / 28VDC |
| Electrical Life | 6000 Cycles |
| Key Index Angle | 90° |
| Key Withdrawal Position | 1 & 2 |
| Mounting Style | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +85°C |
| Panel Cut Out | 19mm |
| Product Series | LK |
| Protection Level | Gold Plated Copper Alloy |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
