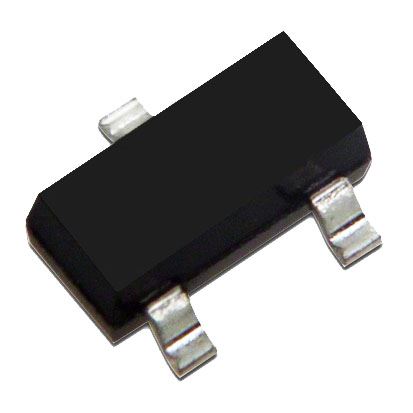

BC847B 45V NPN Small Signal Transistor SOT23
by Diodes Zetex
SKU 551589
MPN: BC847B
Availability:
157 in stock
Original price
£0.18
-
Original price
£0.18
Original price
£0.18
£0.18
-
£0.18
Current price
£0.18
The BC847B transistor is an NPN small signal transistor produced in SOT23 casing, ideally suited for automatic insertion. For further technical specifications please refer to the attached datasheet.
Specification
| Back Order Lead Time | 5 Days |
| Collector Base Voltage | 50V |
| Collector Current | 100mA |
| Collector Emitter Saturation Voltage | 600mV |
| Collector Emitter Voltage | 45V |
| DC Current Gain | 200 |
| Maximum Operating Temperature | 150°C |
| MOQ | 5 |
| Mounting Type | Surface Mount |
| Package | SOT23 |
| Power Dissipation | 300mW |
| Transistion Frequency | 300MHz |
| Type | NPN |
