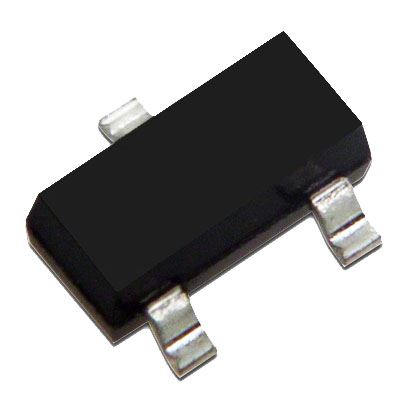

BC817-25 45V NPN Transistor SOT23
by Diodes Zetex
SKU 551584
MPN: BC817-25
Availability:
125 in stock
Original price
£0.24
-
Original price
£0.24
Original price
£0.24
£0.24
-
£0.24
Current price
£0.24
The BC817-25 transistor is an NPN small signal transistor produced in SOT23 casing, ideally suited for automatic insertion. For further technical specifications please refer to the attached datasheet.
Specification
| Back Order Lead Time | 5 Days |
| Collector Base Voltage | 50V |
| Collector Current | 800mA |
| Collector Emitter Saturation Voltage | 700mV |
| Collector Emitter Voltage | 45V |
| DC Current Gain | 160 |
| Maximum Operating Temperature | 150°C |
| MOQ | 5 |
| Mounting Type | Surface Mount |
| Package | SOT23 |
| Power Dissipation | 310mW |
| Transistion Frequency | 100MHz |
| Type | NPN |
