AV9SLD9486002K Momentary 19mm Red LED illuminated Vandal Push Button Switch IP67 APEM
by APEM
SKU 485988
MPN: AV9SLD9486002K
Availability:
Only 4 left!
Original price
£22.56
-
Original price
£22.56
Original price
£22.56
£22.56
-
£22.56
Current price
£22.56

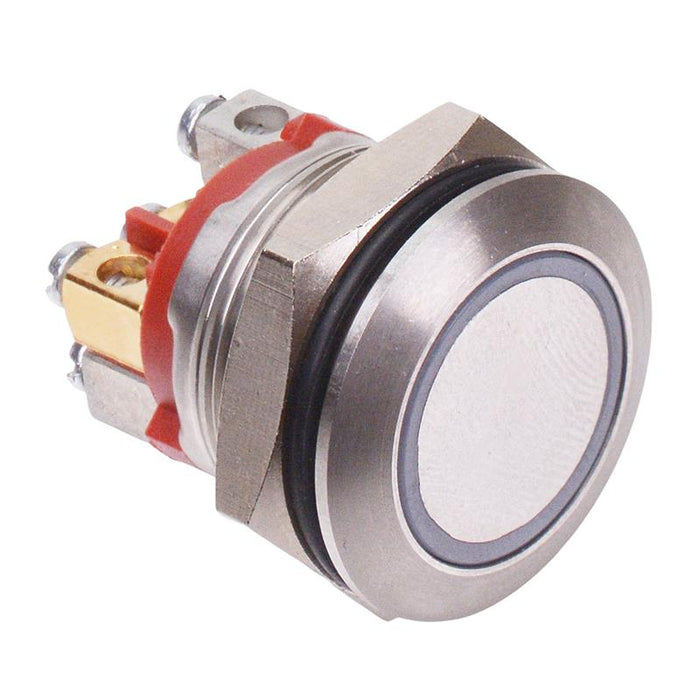

The AV9SLD9486002K is a security vandal resistant push button switch with illuminated ring and momentary NO/NC contacts. The switch features a stainless steel bushing sealed to IP67, suitable for applications requiring a reliable and durable switch over a long lifespan.
Momentary NO/NC contacts Flat actuator Long life Screw terminals Gold plated contacts Stainless steel brushing IP67 protection level Panel cut-out: 19.2mm Rating: 50mA 24VDC Panel thickness: 1-6mm Dimensions: 27.1 x 22mm (length x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Rating | 0.05A 24VDC |
| Current Rating | 0.05A |
| Electrical Life | 1,000,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 7N |
| Operating Temperature | -30°C to +70°C |
| Panel Cut Out | 19.2mm |
| Panel Thickness | 1-6mm |
| Product Series | AV |
| Protection Level | IP67 |
| Terminal Type | Screw |
| Voltage Rating | 24VDC |
