AV09C703D940KX2542-1 APEM Yellow Call 19mm Momentary NO Vandal Push Button Switch SPST
by APEM
SKU 489918
MPN: AV09C703D940KX2542-1
Availability:
78 in stock
Original price
£22.06
-
Original price
£22.06
Original price
£22.06
£22.06
-
£22.06
Current price
£22.06

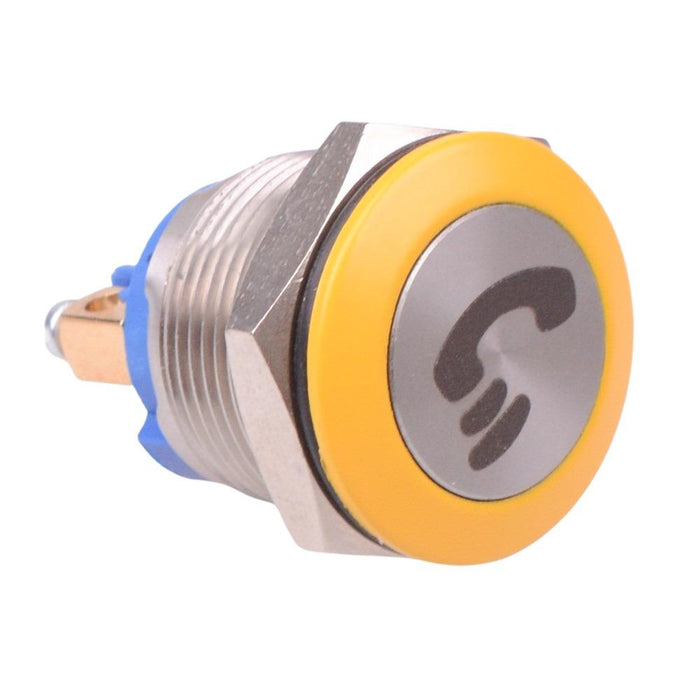

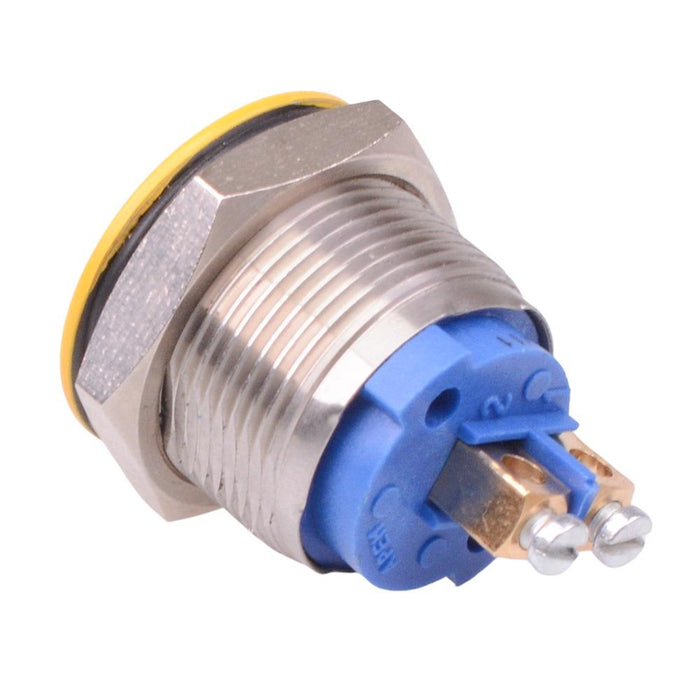

The AV09C703D940KX2542-1 is a yellow 19mm momentary anti vandal push button switch featuring SPST contacts and screw terminals. The switch features a stainless steel body and is suitable for a wide range of applications.
Call symbol Off-(On) momentary function SPST contacts Stainless steel body Tactile feedback Panel cut-out: 19.2mm Panel thickness: 1-6mm Screw terminals Rating: 50mA 24VDC IP65 front panel sealing
Specification
| Actuation | Momentary |
| Colour | Yellow |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Brass |
| Contact Rating | 50mA 24VDC |
| Current Rating | 0.05A |
| Illuminated | No |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +70°C |
| Panel Cut Out | 19.2mm |
| Panel Thickness | 1-6mm |
| Product Series | AV |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 24VDC |
