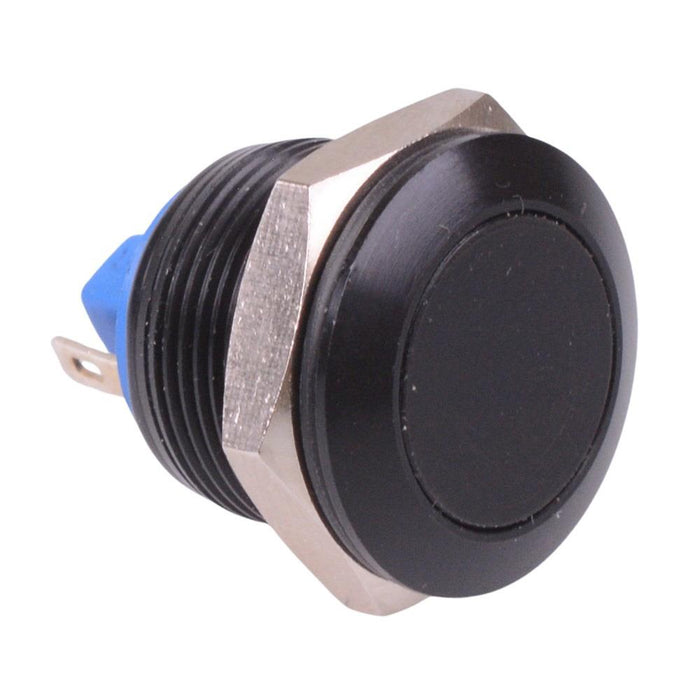

AV091003A270K APEM Off-(On) Momentary Black 19mm Flat Anti Vandal Push Button Switch SPST
by APEM
SKU 489913
MPN: AV091003A270K
Availability:
10 in stock
Original price
£0
Original price
£20.12
-
Original price
£20.12
Original price
Current price
£20.12(inc. VAT)
£20.12
-
£20.12
Current price
£20.12
Quantity Discounts
| Buy 10 - 24 | Get 11% off | £17.91(inc. VAT) each |
| Buy 25 - 49 | Get 16% off | £16.90(inc. VAT) each |
| Buy 50 - 99 | Get 21% off | £15.89(inc. VAT) each |
| Buy 100+ | Get 25% off | £15.09(inc. VAT) each |
The AV091003A270K is a security vandal resistant push button switch featuring NO momentary contacts and quick connect terminals. The switch features a long life and black chrome plated brass bushing, suitable for applications requiring a reliable and durable switch.
NO SPST contacts Flat actuator Long life Quick connect / solder lug terminals Silver contacts Black chrome plated brass brushing Panel cut-out: 19.2mm Rating: 4A 12VDC Panel thickness: 1-11mm Dimensions: 28.3 x 22mm (length x diameter)
Specification
| Actuation | Momentary |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Material | Silver |
| Contact Rating | 4A 12VDC |
| Current Rating | 4A |
| Illuminated | No |
| Material | Chrome Plated Brass |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +70°C |
| Panel Cut Out | 19.2mm |
| Panel Thickness | 1-11mm |
| Product Series | AV |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
