AV03C7L3D2403E APEM Green LED Momentary 22mm Tactile Vandal Push Button Switch NO
by APEM
SKU 489911
MPN: AV03C7L3D2403E
Availability:
46 in stock
Original price
£22.57
-
Original price
£22.57
Original price
£22.57
£22.57
-
£22.57
Current price
£22.57

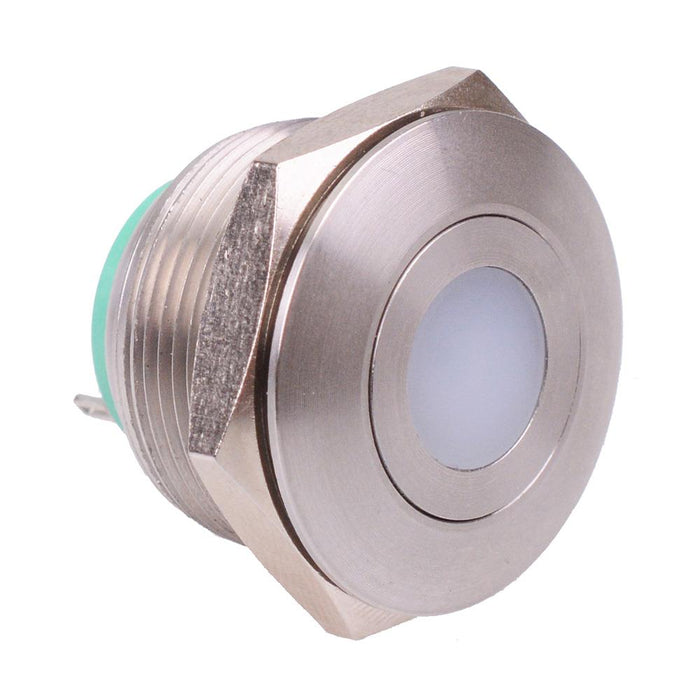

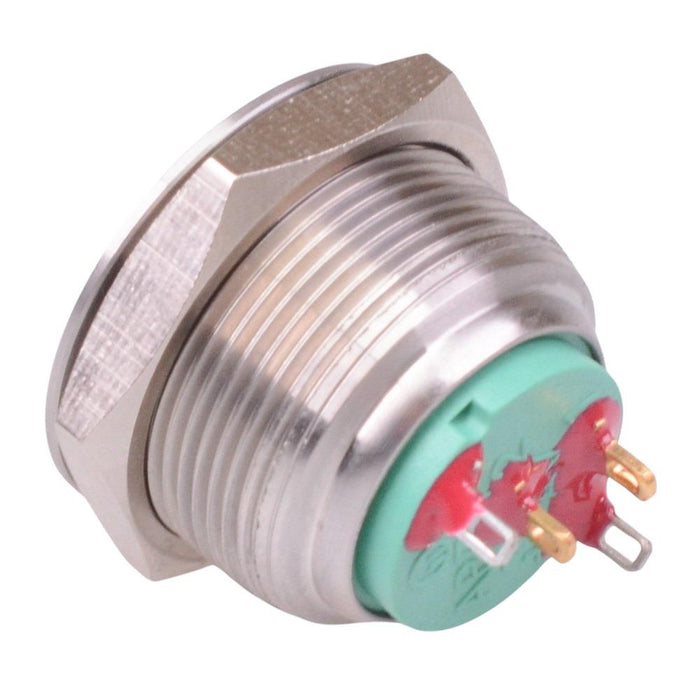

The AV03C7L3D2403E is a green illuminated 22mm momentary anti vandal push button switch featuring SPST-NO contacts and solder terminals. The switch features a stainless steel body and is suitable for a wide range of applications.
Green LED LED voltage: 4V Off-(On) momentary function SPST contacts Stainless steel body Tactile feedback Panel cut-out: 22.2mm Panel thickness: 1-6mm Screw terminals Rating: 50mA 24VDC
Specification
| Actuation | Momentary |
| Colour | Green |
| Contact Configuration | SPST |
| Contact Material | Stainless Steel |
| Contact Rating | 50mA 24VDC |
| Current Rating | 0.05A |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 4V |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +70°C |
| Panel Cut Out | 22.2mm |
| Panel Thickness | 1-6mm |
| Product Series | AV |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
