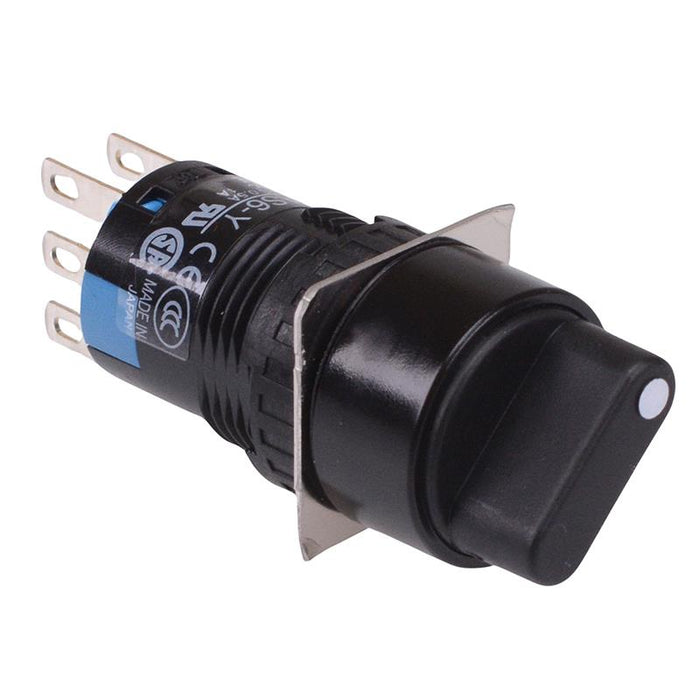

AS6M-2Y2PC 2 Position 16mm Latching Round Selector Switch DPDT IDEC
by IDEC
SKU 489112
MPN: AS6M-2Y2PC
Availability:
Only 5 left!
Original price
£23.90
-
Original price
£23.90
Original price
£23.90
£23.90
-
£23.90
Current price
£23.90
The AS6M-2Y2PC is a 2 position latching light duty industrial selector switch by IDEC, featuring DPDT contacts and IP65 protection rating. The switch features a short 22mm body length and is suitable for 16.2mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation, use in factories and offices.
- Latching operation
- 90° 2 positions
- DPDT contacts
- IP65 protection rating
- Contact rating: 3A 250V
- Panel cut-out: 16.2mm
- Panel thickness: 0.5-6mm
- Solder terminals
- Dimensions: 45.5 x 18mm (length x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 196 Days |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 3A 250V |
| Current Rating | 3A |
| Electrical Life | 50,000 Cycles |
| Head Type | Selector |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 6mm |
| Product Series | A6 |
| Protection Level | IP65 |
| Terminal Type | Solder |
| Voltage Rating | 250V |
