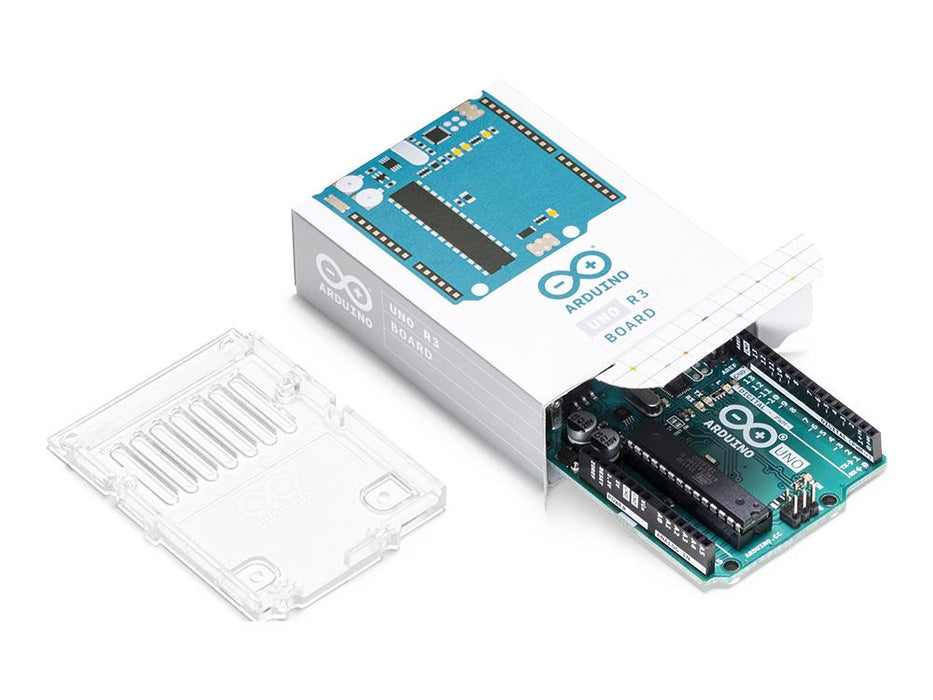

Arduino® Uno Rev3
by Arduino
SKU 490723
MPN: A000066
Availability:
46 in stock
Original price
£23.50
-
Original price
£23.50
Original price
£23.50
£23.50
-
£23.50
Current price
£23.50

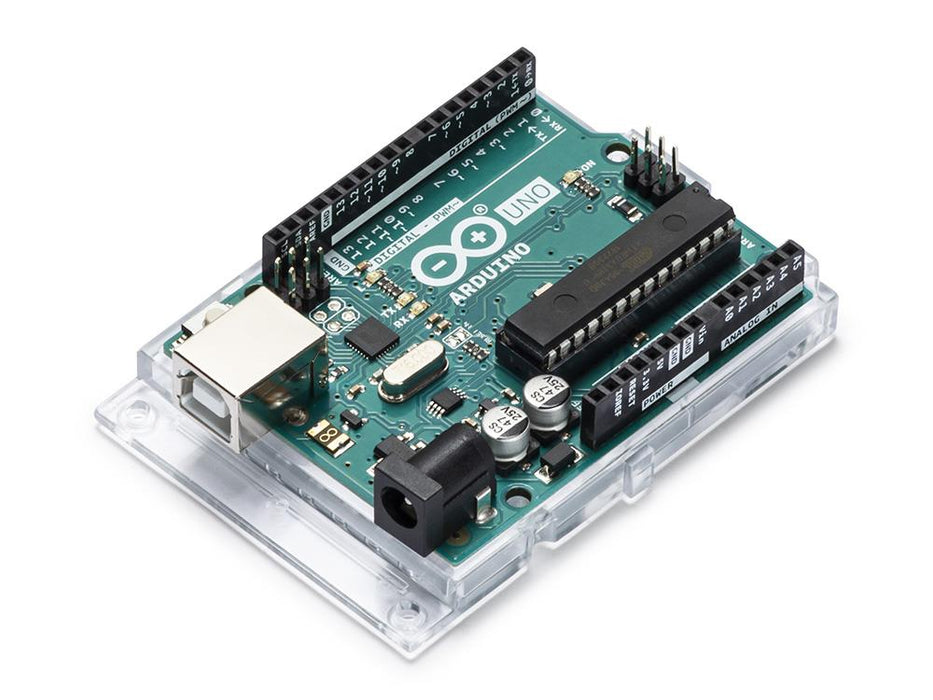

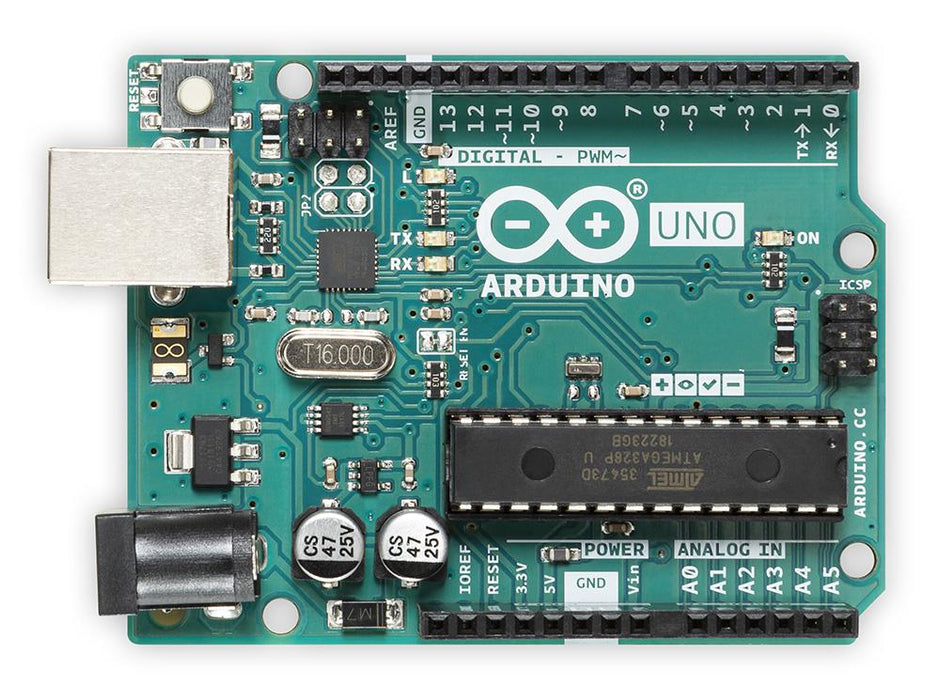

The Arduino Uno Rev3 or R3 is a microcontroller board based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator (CSTCE16M0V53-R0), a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. "Uno" means one in Italian and was chosen to mark the release of Arduino Software (IDE) 1.0. The Uno board and version 1.0 of Arduino Software (IDE) were the reference versions of Arduino, now evolved to newer releases.
- High performance
- Arduino compatibility
- Easy to use
- Reliable connection
- Wide application range
Specification
| Analog Inputs | 6 |
| Clock Speed | 16 MHz |
| DC Current for Pin | 50 mA (3.3V) |
| DC Current Per I/O Pin | 20 mA |
| Digital I/O Pins | 14 (6 PWM) |
| EEPROM | 1KB |
| Input Voltage | 7-12V |
| LED Built In | 13 |
| Memory | 32KB Flash |
| Microcontroller | ATmega328P |
| Operating Voltage | 5V |
| SRAM | 2KB |
| Type | Board |
