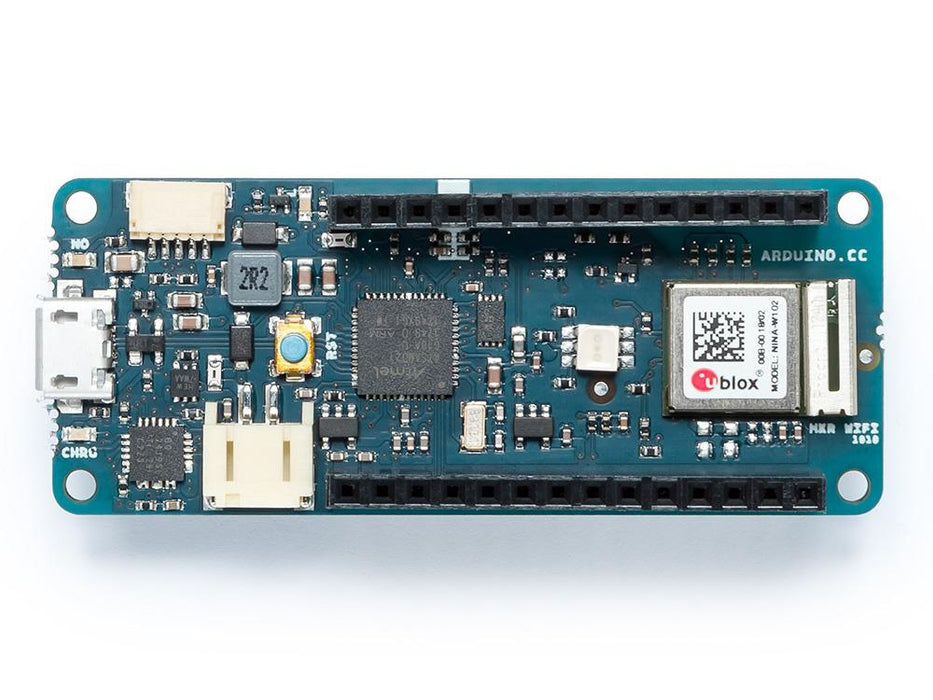

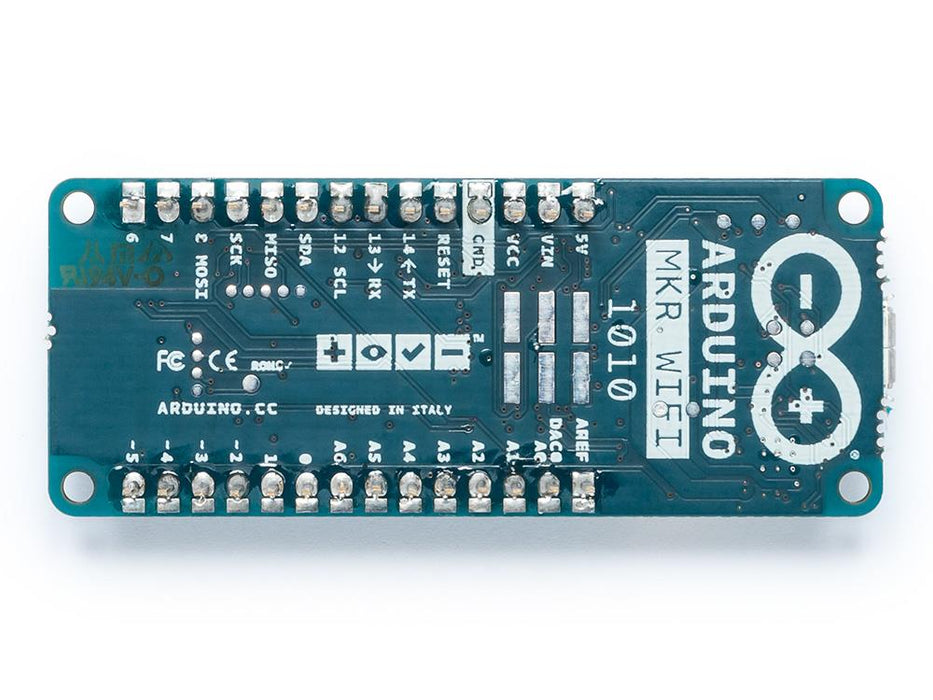

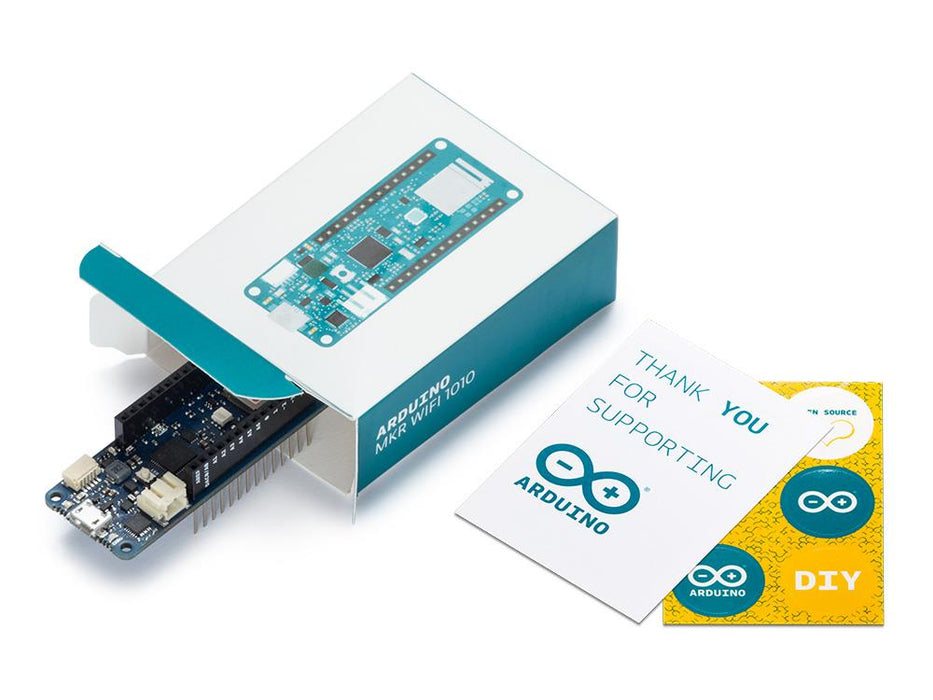

Arduino® MKR WiFi 1010

by Arduino
SKU 490735

MPN: ABX00023

Availability:
50 in stock
Original price £35.00 - Original price £35.00
Original price
£35.00
£35.00 - £35.00
Current price £35.00
The Arduino MKR WiFi 1010 is the easiest point of entry to basic IoT and pico-network application design. Whether you are looking at building a sensor network connected to your office or home router, or if you want to create a Bluetooth Low Energy device sending data to a mobile phone, the MKR WiFi 1010 is your one-stop-solution for many of the basic IoT application scenarios. The board's main processor is a low power Arm Cortex-M0 32-bit SAMD21, like in the other boards within the Arduino MKR family. The WiFi and Bluetooth connectivity is performed with a module from u-blox, the NINA-W10, a low power chipset operating in the 2.4GHz range. On top of those, secure communication is ensured through the Microchip ECC508 crypto chip. The MKR WiFi 1010 also features a battery charger and a directional RGB LED on-board. Use your MKR board on Arduino's IoT Cloud, a simple and fast way to ensure secure communication for all of your connected Things. You can get your board to connect to any kind of existing WiFi network, or use it to create your own Arduino Access Point. Compatible with other Cloud Services.

  • High performance
  • Arduino compatibility
  • Easy to use
  • Reliable connection
  • Wide application range
  • Specification
    Analog Inputs 7
    Analog Outputs 1 (DAC)
    Clock Speed 48MHz, 32.768kHz (RTC)
    Connectivity u-blox NINA-W102 radio module, I2C
    DC Current Per I/O Pin 7mA
    Digital I/O Pins 22 (13 PWM)
    External Interrupts 10
    Input Voltage 5-20V
    LED Built In 6
    Memory 256KB Flash
    Microcontroller SAMD21
    Operating Voltage 3.3V
    SPI 1x
    SRAM 32KB
    Support Batteries Li-Po Single Cell, 3.7V, 1024mAh Minimum
    Type Board
    UART Interfaces x1
